Nilai500DIY 500W mono power amplifier kit

H09U005990

MSRP:

€820.00

Prices excl. VAT plus shipping costs

In Stock

Downloads

datasheets

documentation

Product information "Nilai500DIY 500W mono power amplifier kit"

/Nilai® Class D technology is here!

Unleash the power of high-fidelity audio with the Nilai500DIY mono kit — the ultimate DIY amplifier solution for audio enthusiasts. Built around the state-of-the-art Nilai500DIY amplifier module designed by Hypex, this kit offers unmatched performance, ease of assembly, and flexibility for creating your own premium mono-channel amplifier.

The Nilai500DIY module delivers high-end performance with low distortion, high efficiency, and superb linearity, ensuring pristine, audiophile-grade sound. It is engineered to provide a clean and accurate audio signal, allowing every nuance of your music to be faithfully reproduced. The module's advanced Nilai® technology contributes to its high efficiency, reducing heat dissipation and enhancing overall system reliability.

PS500DIY

The kit also includes the PS500DIY power supply, which is engineered with high quality, efficiency, and reliability in mind. This regulated power supply minimizes noise and distortion while providing robust power output. A regulated power supply ensures consistent voltage and current delivery, preventing fluctuations that can introduce noise and distort the audio signal. As a result, you get a cleaner, more accurate sound with improved dynamics, detail, and clarity.

power to deliver

This kit provides an impressive output of 500 watts at 2 ohms, 525 watts at 4 ohms and 260 watts at 8 ohms, making it capable of driving demanding speakers with ease and delivering dynamic, powerful audio. Too much power for your speakers? For medium-sized speakers, please consider the Nilai500DIY stereo kit, which provides a suitable balance of power and performance for a variety of listening environments.

No soldering required! The kit includes all necessary components and straightforward instructions, making it accessible for beginners and experienced DIYers alike. Also, a building instruction video is available at the video tab.

Seamlessly integrate this amplifier with other components in your audio system using the available 12V trigger input for synchronized power control. You'll also find a user-friendly on/off switch button on the front panel for easy access and operation.

PERSONALIZE

Perfect for creating a high-power, dual-mono setup or expanding your existing multi-channel audio system, this kit is equipped with a rear LED switch that allows you to easily adjust the brightness of the front LED, ensuring it fits perfectly with your room's ambiance or matches the brightness of your setup. The kit also offers flexibility to tailor the final build to your personal style or existing setup with the available faceplates.

Whether you're an audiophile or a DIY enthusiast, the Nilai500DIY mono kit brings the joy of building your own high-performance amplifier with professional-level results. Experience the benefits of Hypex's cutting-edge Nilai® amplification technology, with reduced heat dissipation, higher efficiency, and exceptional sound quality.

The Nilai500DIY mono kit is a perfect match with the DIYclassD PreAmplifier, allowing you to create a complete, high-performance audio system with seamless integration and exceptional sound quality.

Build your own audio masterpiece with the Nilai500DIY mono kit and enjoy uncompromised sound quality, tailored to your taste.

Warranty: 5 years / 20.000h

FEATURES

• Ultra Low Distortion
• Very Low Idle Power
• Very Low Noise
• Very Low Output Impedance
• Incorporates Audiophile Components

SPECIFICATIONS

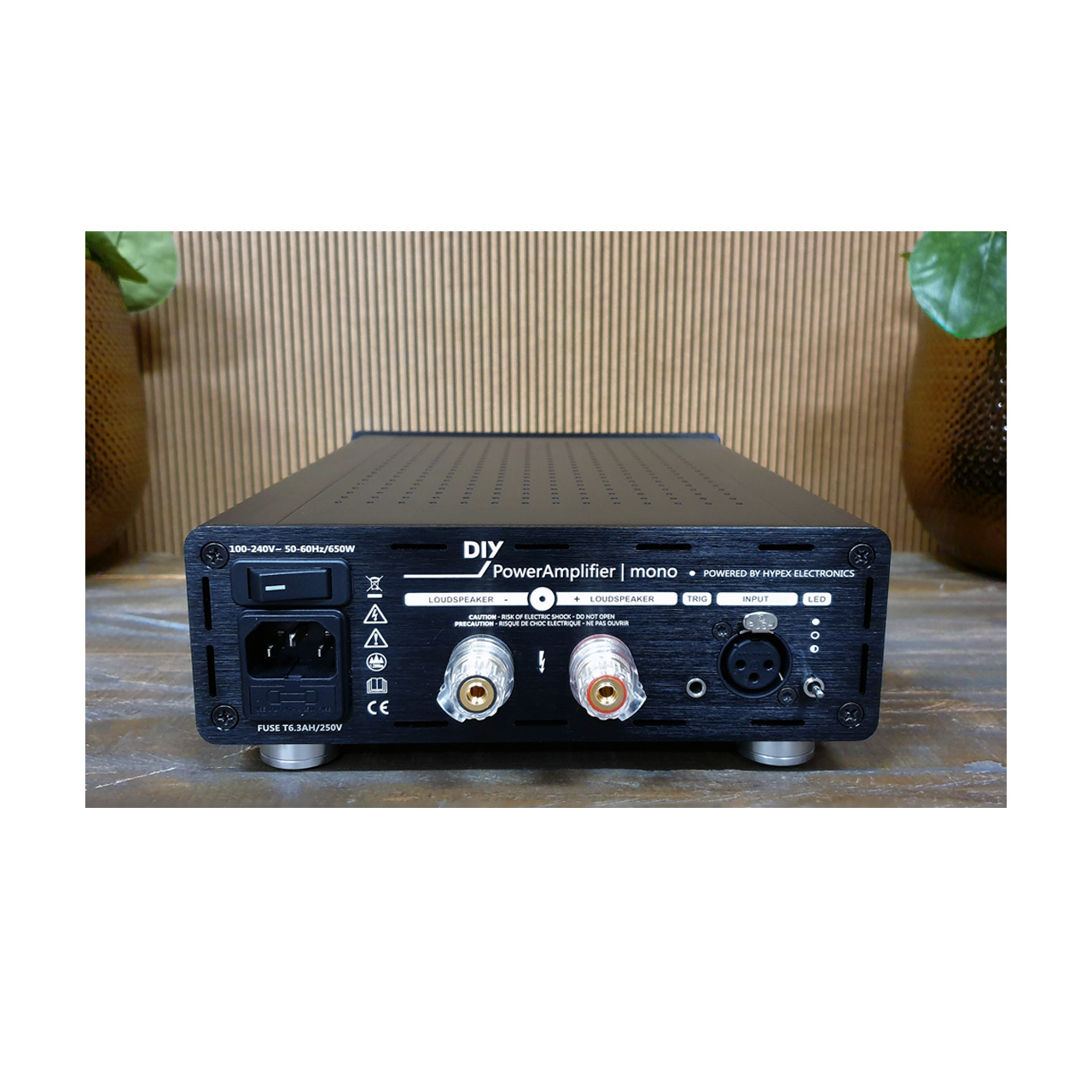

Inputs

• 1 x Trigger 12V
• 1 x Balanced XLR

Outputs

• 1 x Goldplated Bindingpost Set
(Banana plug, Spade plug or Bare wire)

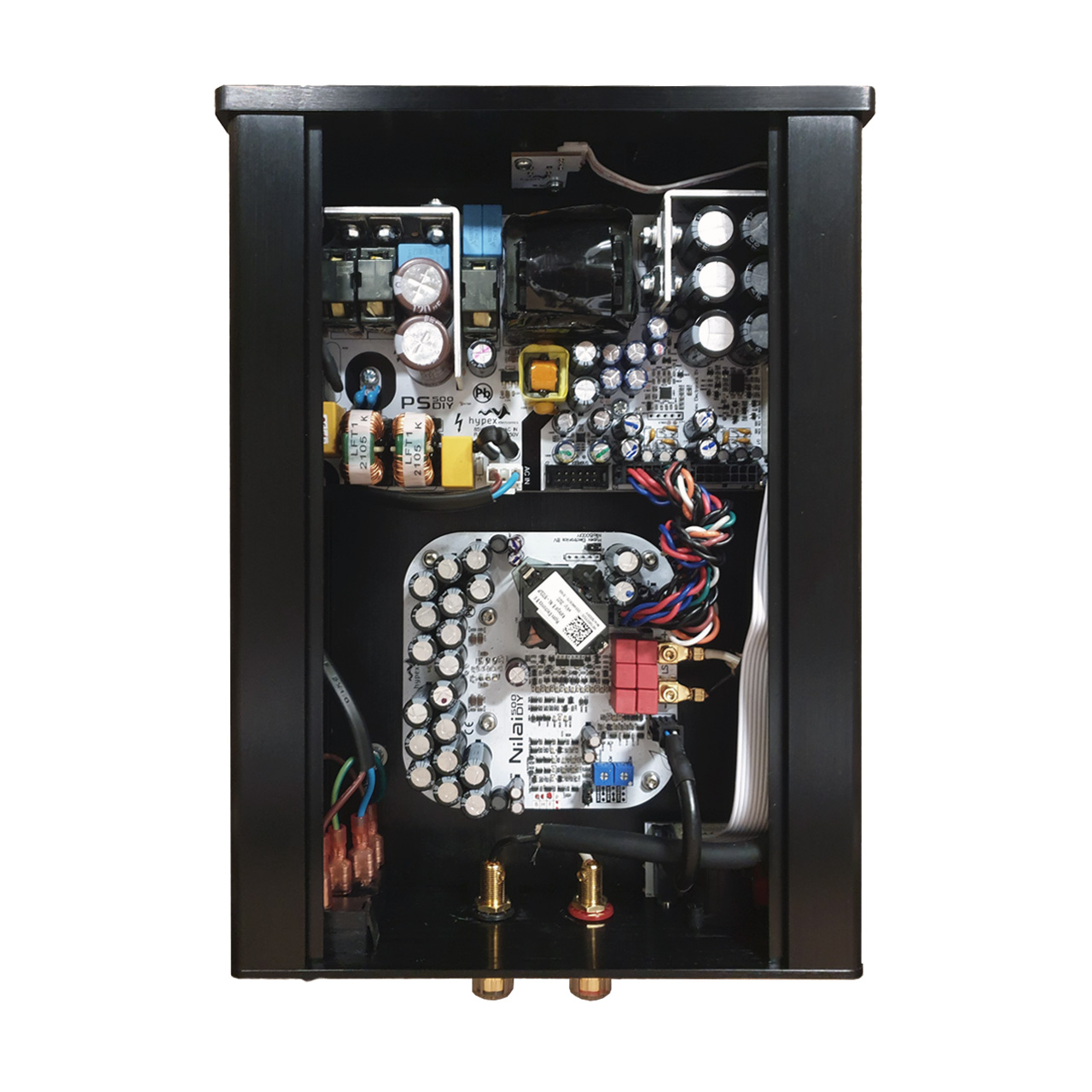

THIS KIT CONTAINS

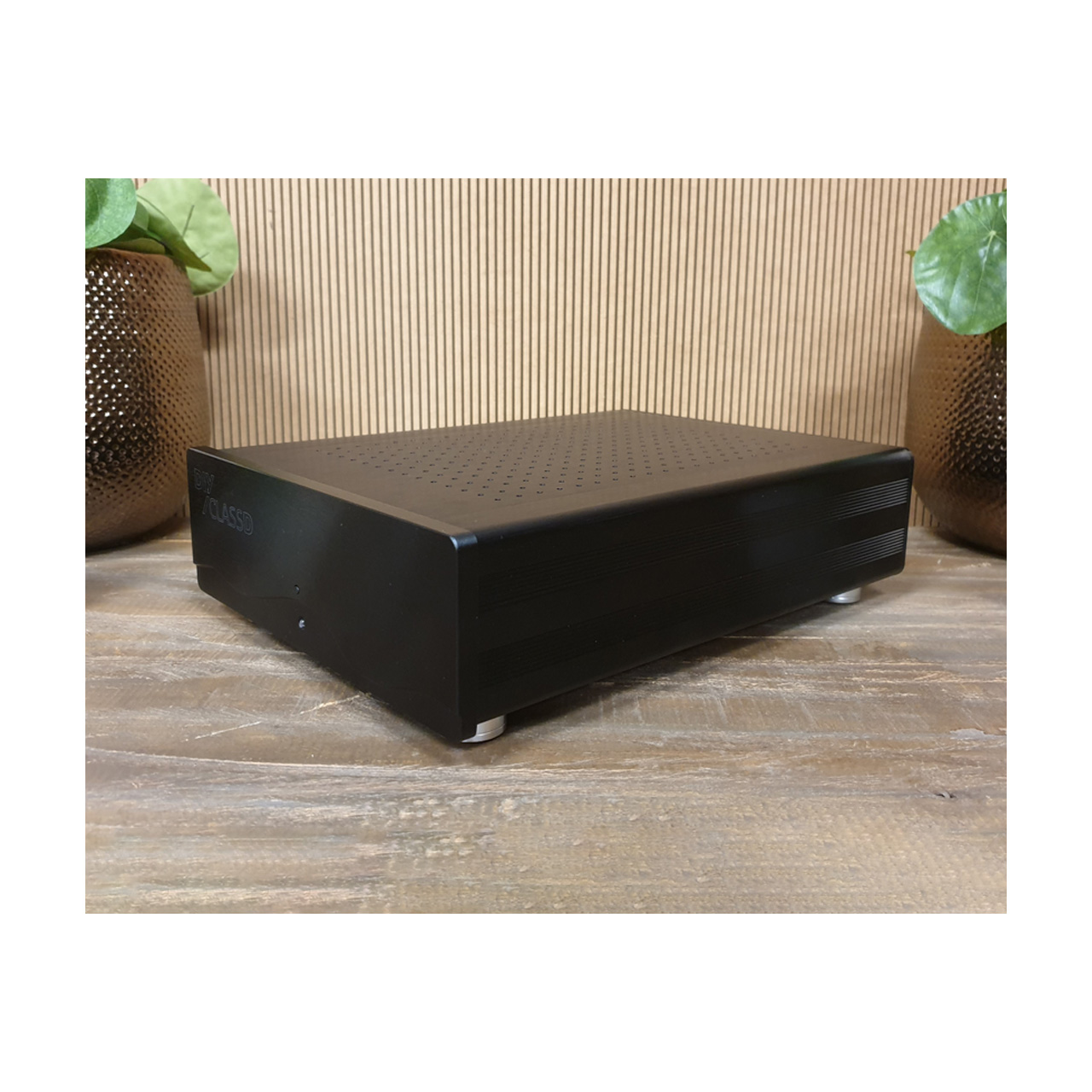

• Complete DIYclassD Nilai500DIY mono case “matte black”,
• Complete internal cable harness,
• PS500DIY power supply,
• Nilai500DIY amplifier module,
• Inputboard & Frontboard,
• All needed mounting materials,
• Assembly instruction,
• 1.5mm Allen key,
• 2.5mm Allen key,
• TX-10 Torx key,
• TX-20 Torx key

Also available in a 2 x 250W stereo kit

Output Power (2Ω):	500W
Output Power (4Ω):	525W
Output Power (8Ω):	260W
Channels:	1
Automatic input voltage selection:	Yes
Mains voltage input:	100-120Vac / 200-240Vac ±10%
