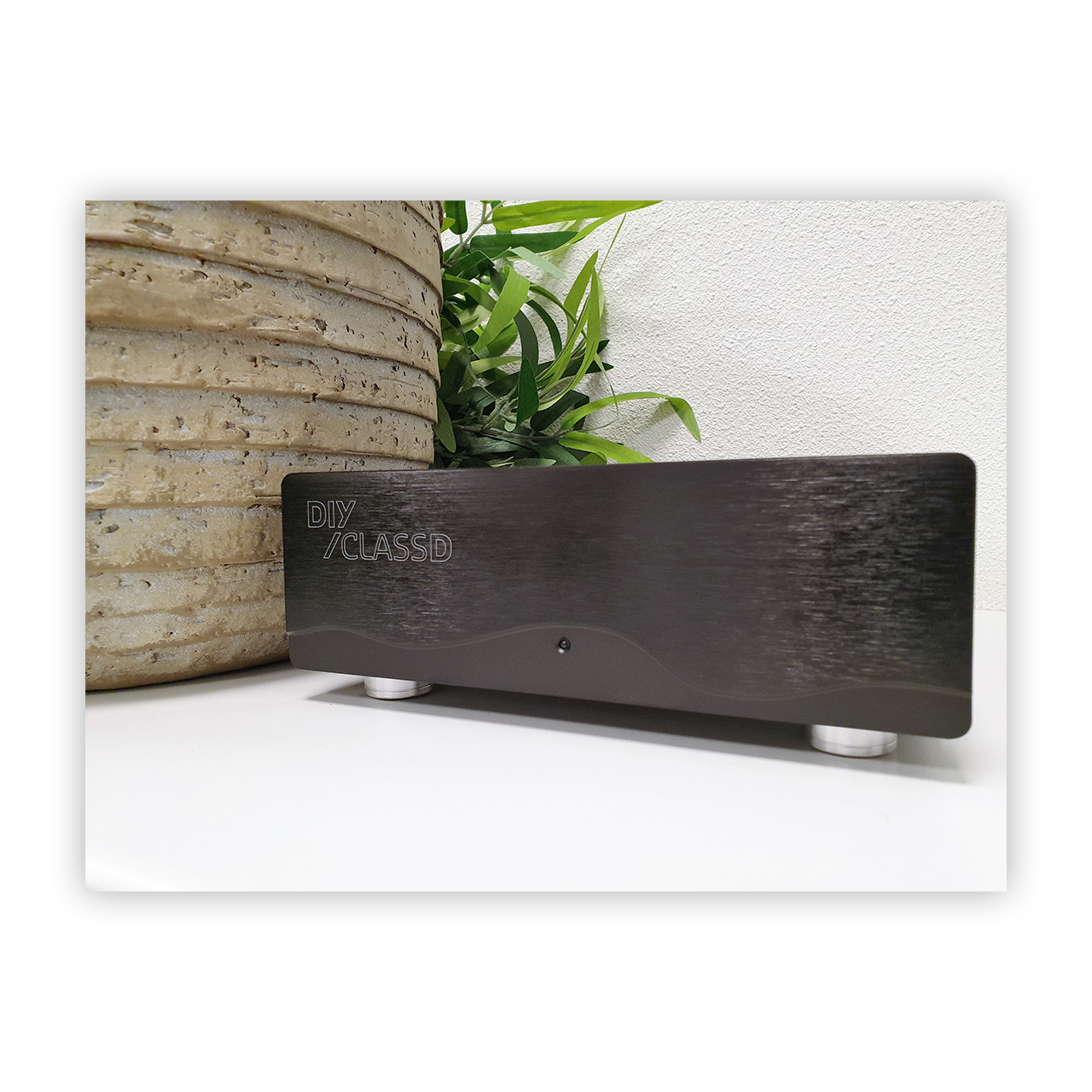

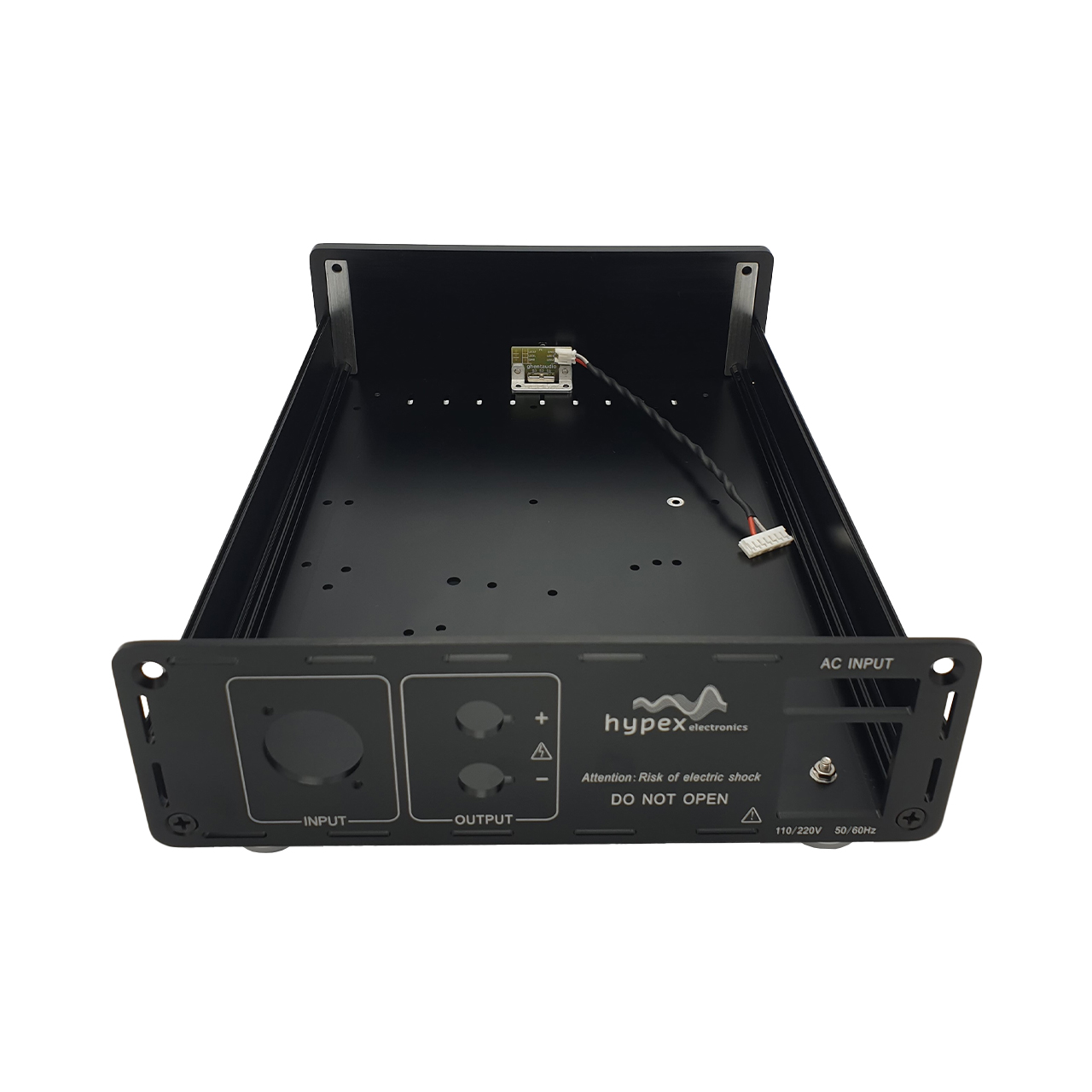

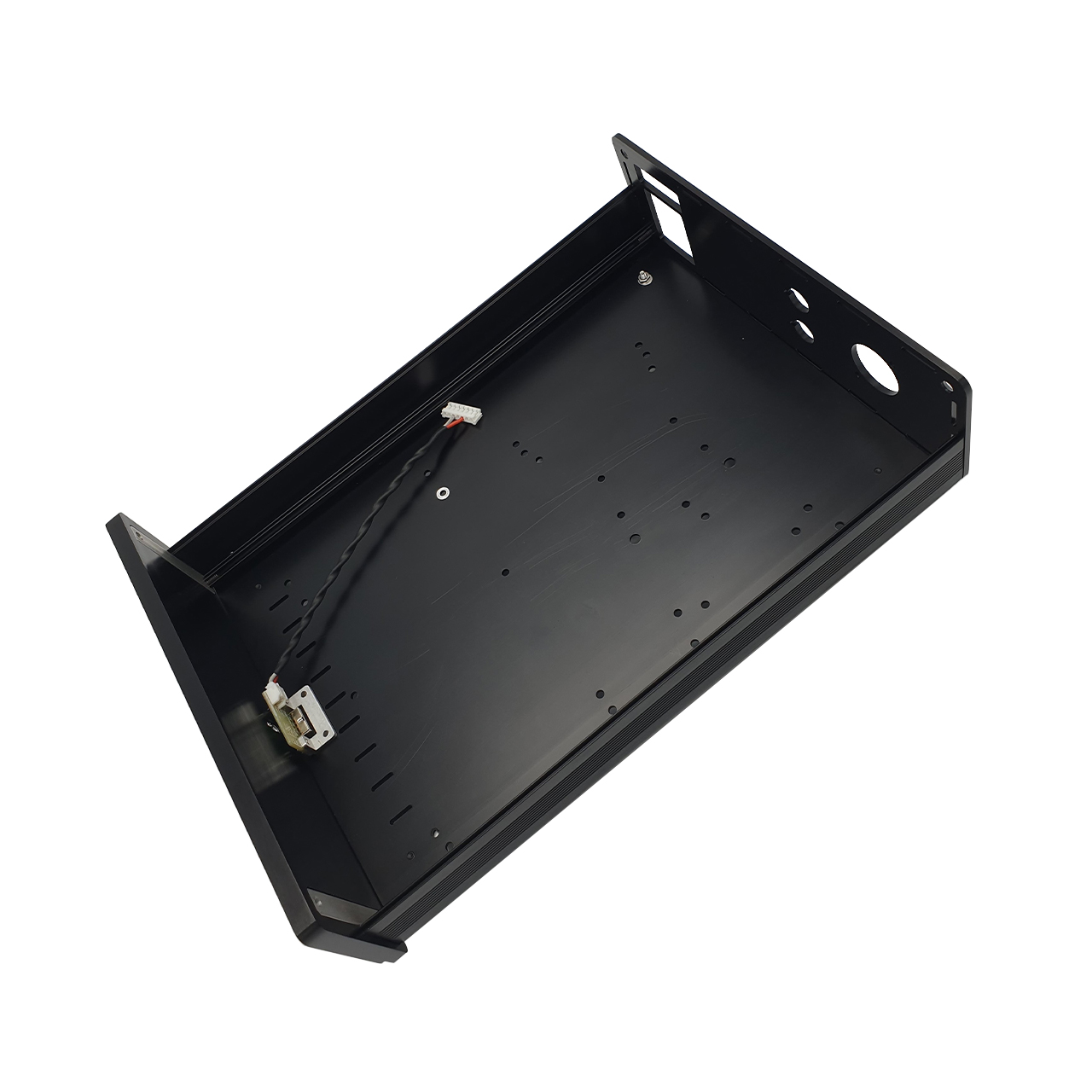

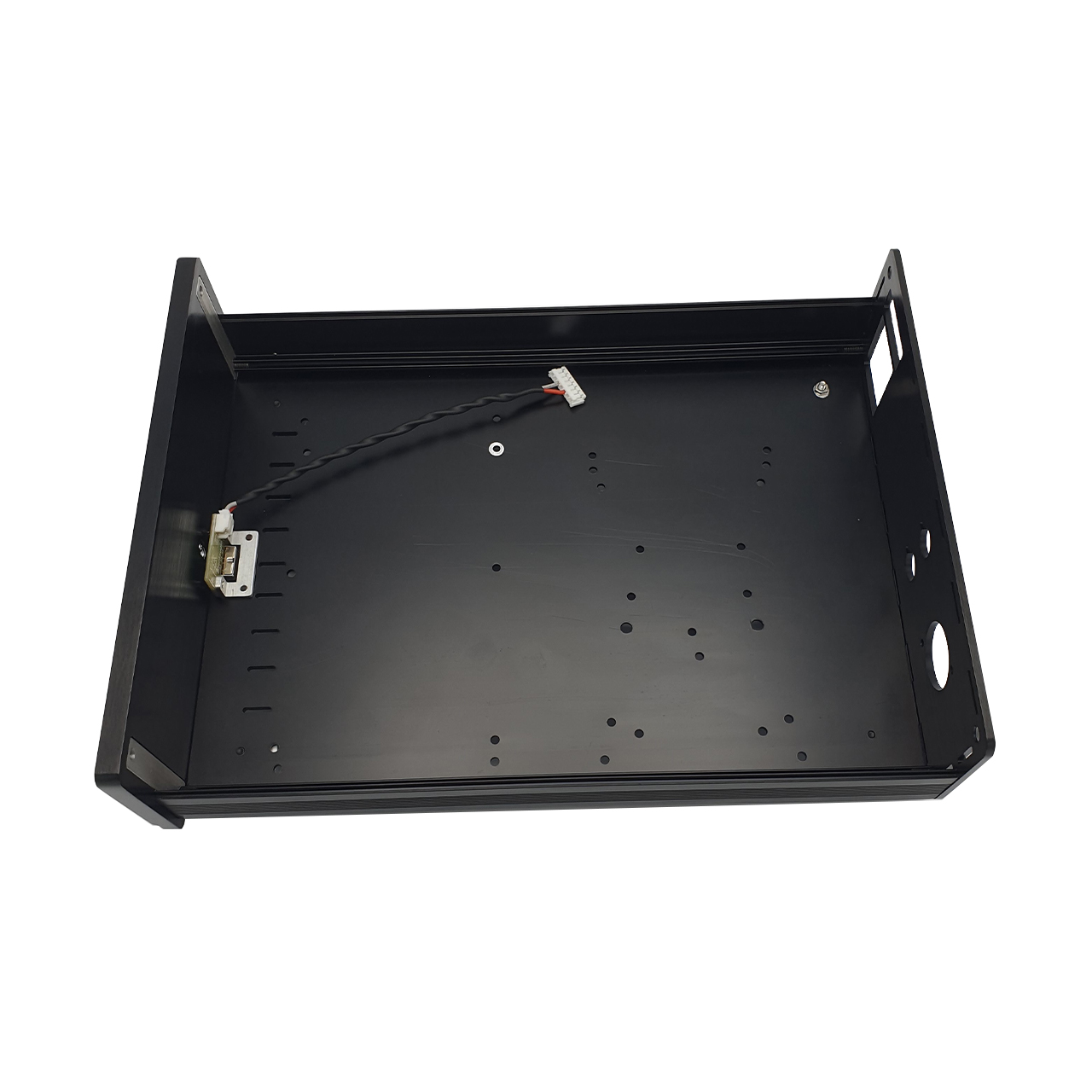

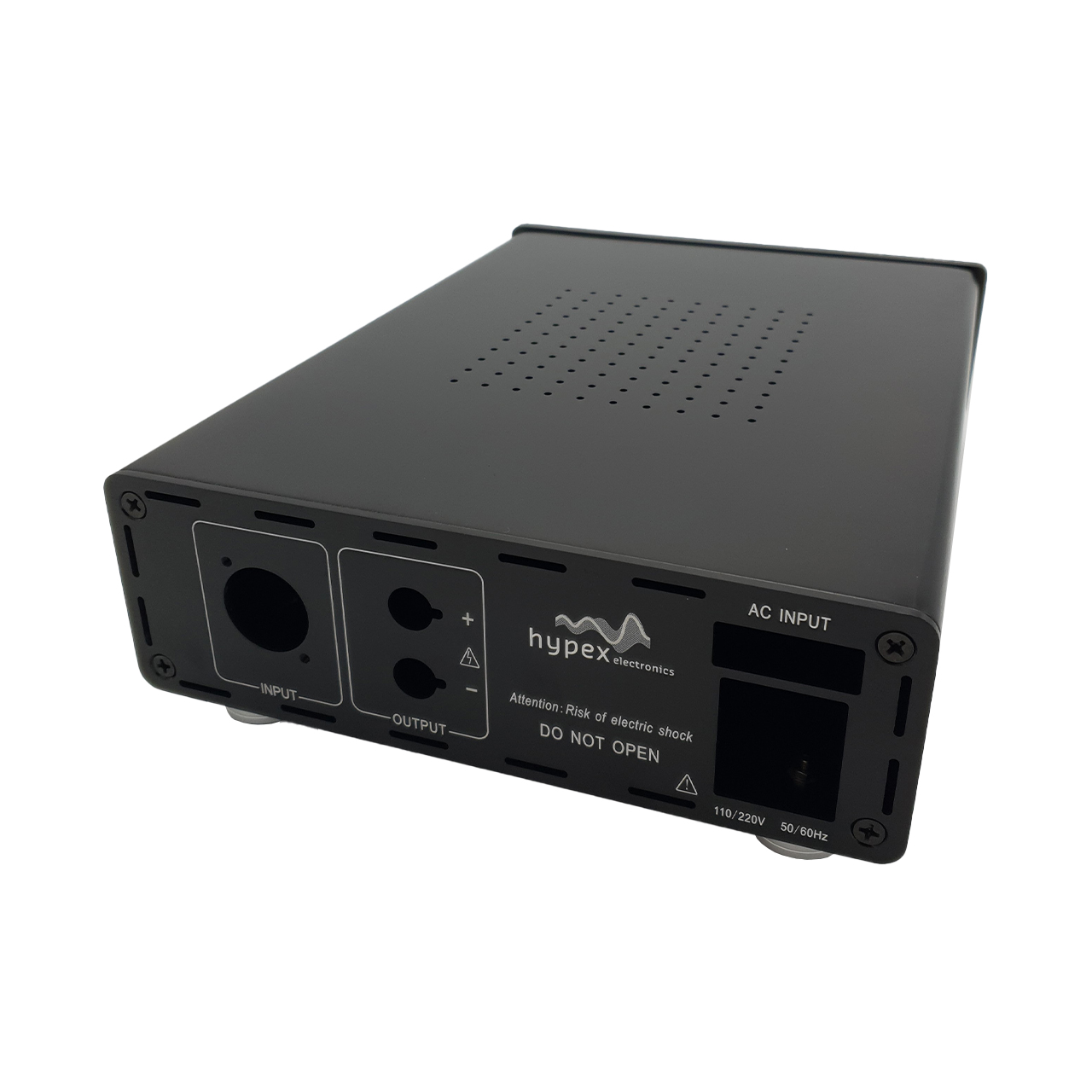

Case Hypex DIY mono

*** This product is discontinued *** The UcD700HG amplifier module is a self-contained high-performance class D amplifier intended for a wide range of audio applications, ranging from Public Address systems to ultrahigh-fidelity replay systems for studio and home use. Chief distinguishing features are flat frequency response irrespective of load impedance, nearly frequency-independent distortion behaviour and very low radiated and conducted EMI. Control is based on a phase-shift controlled self-oscillating loop taking feedback only at the speaker output. APPLICATIONS Audiophile power amplifiers for professional and consumer use HIGHLIGHTS Flat, fully load-independent frequency responce Low output inpedance Very low, frequency-independent THD Fully passive loop control Consistent top performer in listening trails GENERAL FEATURESRuns on unregulated +/- railsPop-free start and stop control Differential audio input Overcurrent and overvoltage protection HxR ready

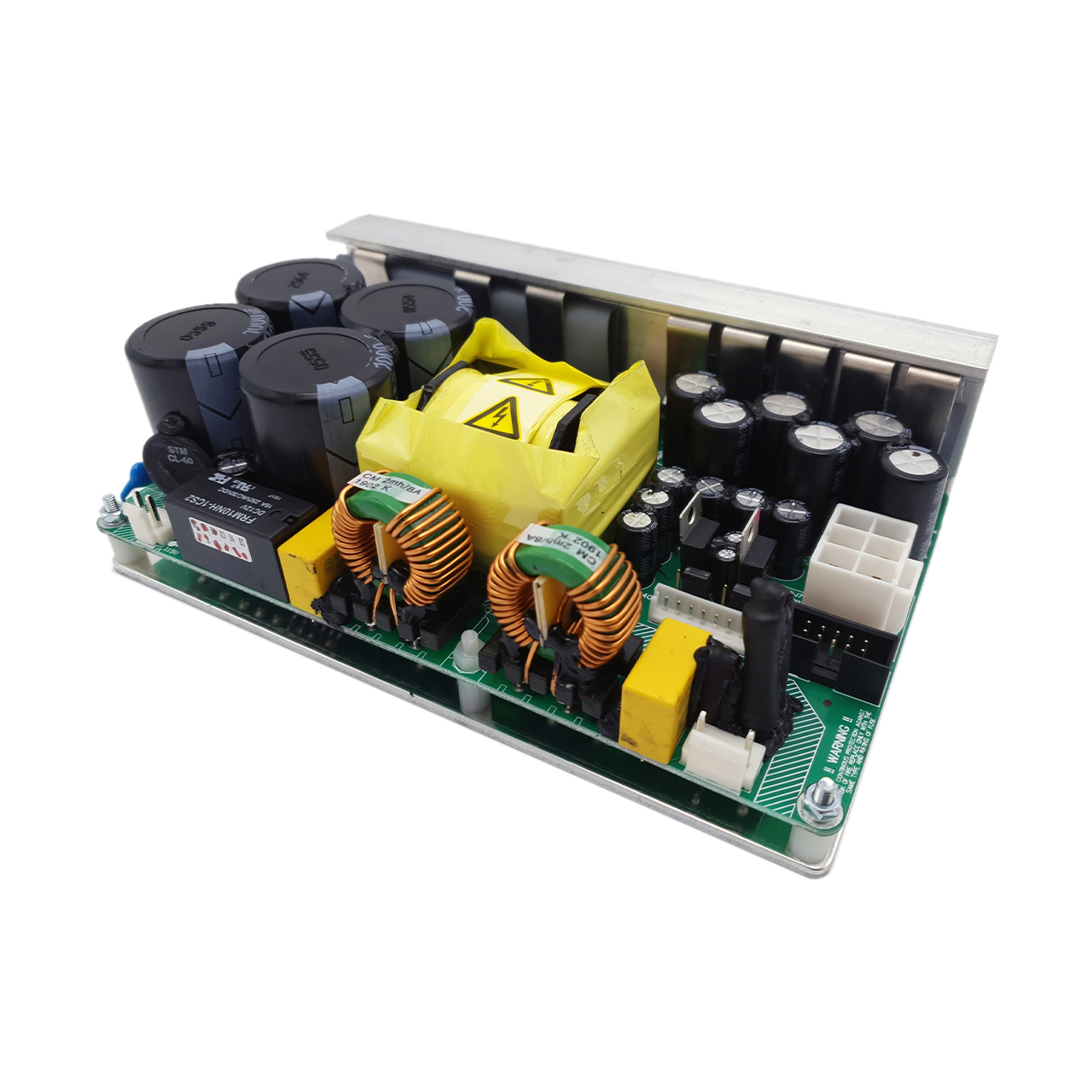

The SMPS1200 represents a high-efficiency Safety Class 2 switch mode power supply meticulously engineered for compatibility with our UcD™, NCORE® and NCOREx® amplifier modules. Highlighted features encompass superior efficiency across the entire load spectrum, an exceptionally compact form factor, lightweight construction, and minimal radiated and conducted electromagnetic interference (EMI). Additionally, the SMPS1200 boasts an advanced overcurrent protection mechanism that, during a temporary overload, restricts the output current. Only when the overload persists for an extended duration does the supply transition into hiccup mode, maintaining this state until the overload condition resolves. This attribute, in conjunction with substantial primary electrolytic buffer capacitors, enables the supply to deliver robust dynamic headroom power to the connected amplifier. Furthermore, the SMPS1200 includes a symmetrical auxiliary output and a control circuit seamlessly interfacing with our UcD™, NCORE® and NCOREx® amplifier modules. Activation for routine operation or deactivation during a critical fault is managed through built-in actuators, ensuring a reliable safeguard. From the initial design phase to the final implementation, the SMPS1200 is optimized to achieve the lowest possible EMI signature, meeting the stringent demands of the most sophisticated audio applications. The SMPS1200 is designed with a selectable input voltage range, allowing it to accommodate various power input specifications. This flexibility enhances its adaptability to different regions and power grid configurations, making it a versatile choice for international applications. The SMPS1200 complies with relevant industry standards and certifications, ensuring that it meets the highest benchmarks for quality, safety, and performance. This commitment to standards reinforces its reliability in professional audio applications. Relevant standards: The SMPS1200A100, SMPS1200A180, SMPS1200A400 and SMPS1200A700 revision 1001 and higher fulfil the requirements of: IEC60065:2014 + A11:2017, IEC62368-1:2014 + A11:2017, UL62368-1:2014 Ed.2 and CSA C22.2#62368-1:2014 Ed.2. The SMPS1200 is an ETL listed component for the USA (UL62368-1:2014 Ed. 2) and Canada (CSA C22.2#62368-1:2014 Ed.2). HIGHLIGHTS • High efficiency • Small form factor • Low EMI FEATURES • Selectable input voltage range • Remote controlled operation • 4 variants available: A100 / A180 / A400 / A700 PROTECTIONS • Advanced Overcurrent protection • Over temperature protection • DC detection input POSSIBLE APPLICATIONS • Active Loudspeakers, for home and professional use • Line Array and Immersive Systems • Power Amplifiers, for home and professional use • Multichannel Power Amplifiers • Home Theatre Systems Notes: The SMPS1200A100 is not available for DIY customers. NCORE® and NCOREx® amplifier modules are not available for DIY customers.

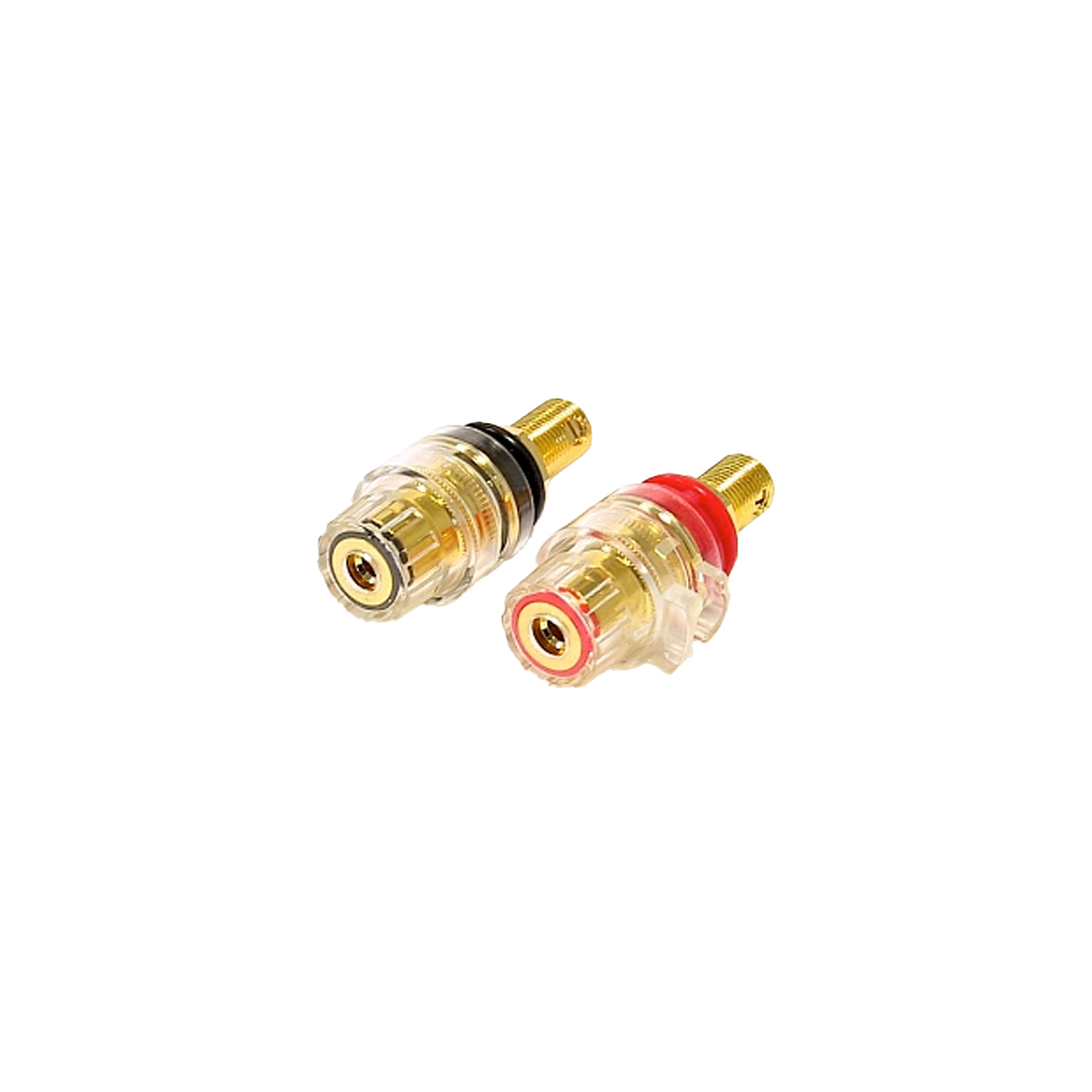

Goldplated binding post to connect your loudspeakers with your amplifier chassis. For banana plug, spade plug and bare wire connections. This binding post can be mounted as a set with the black spacer or as two single connectors.

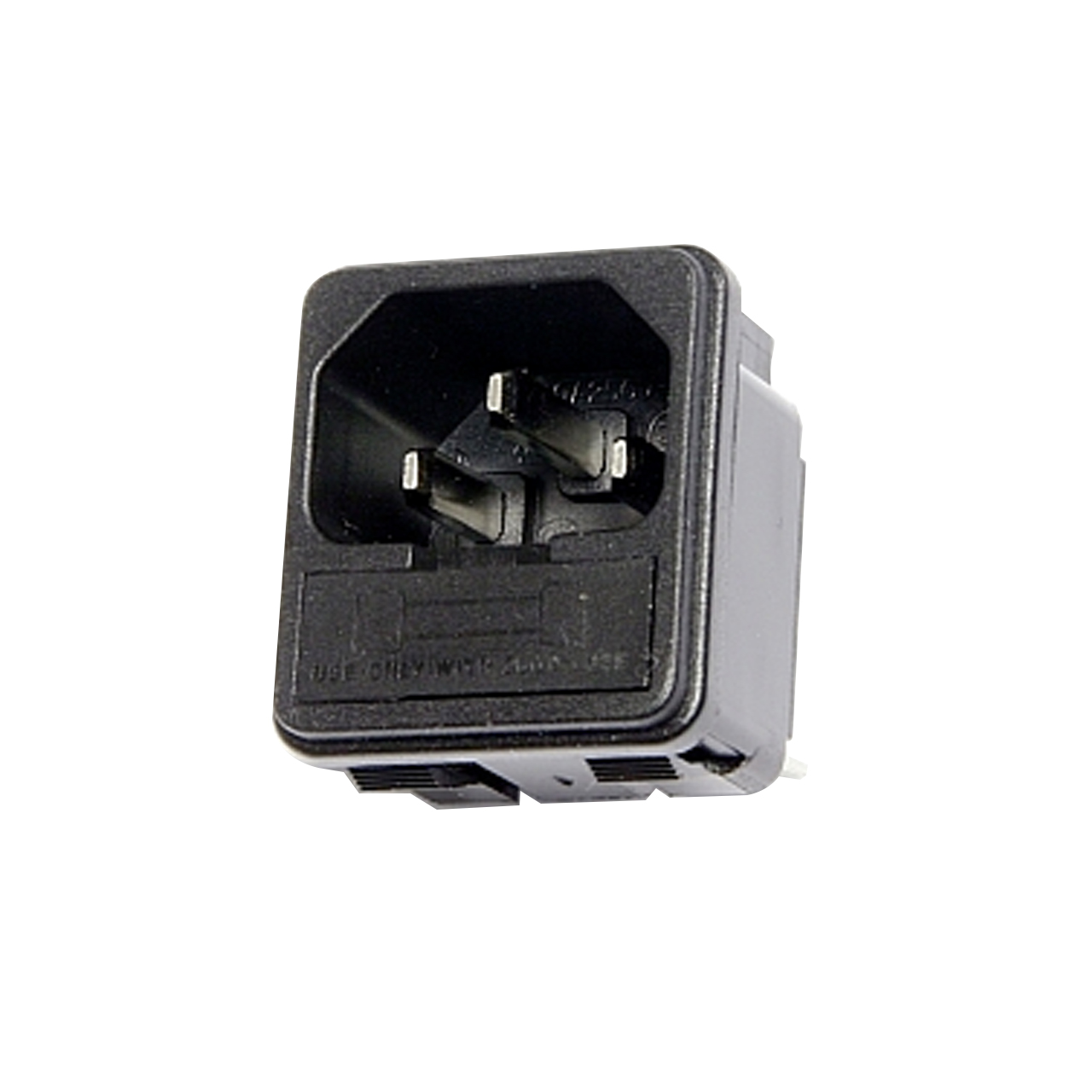

This IEC 60320 C14 power connector with fuse holder can be used in your amplifier housing to connect the mains power to your amplifier supply. This power connector is capable to handle 10A at 230V. At the back are Faston terminals for easy connection. The mounting hole must be 32.5x27mm. Fuse not included.

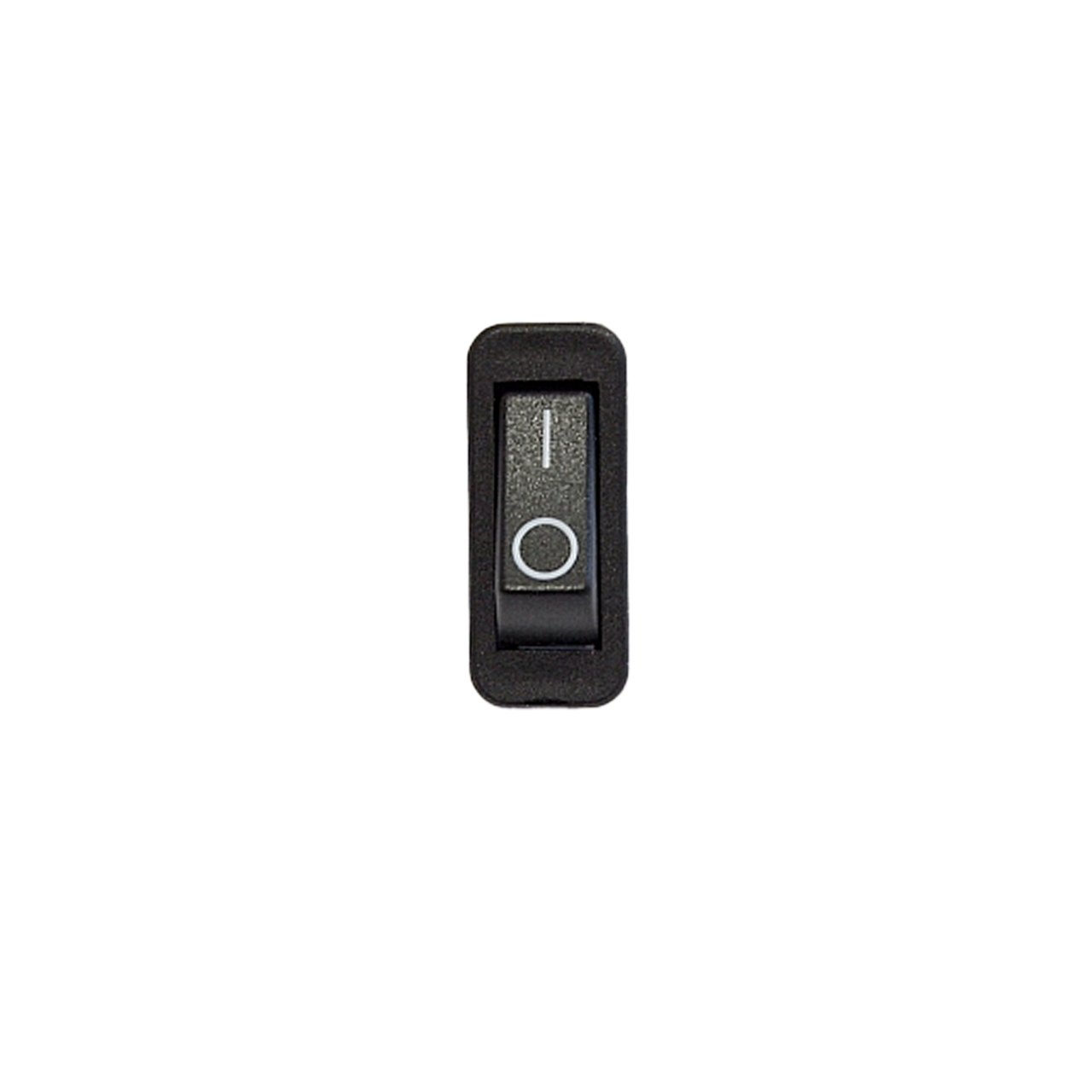

This on-off switch can be used as a main switch for your amplifier cabinet. This snap-in switch can handle 16A at 230V. The mounting hole is 31 x 11mm and ~ 25mm deep including the faston terminals.
