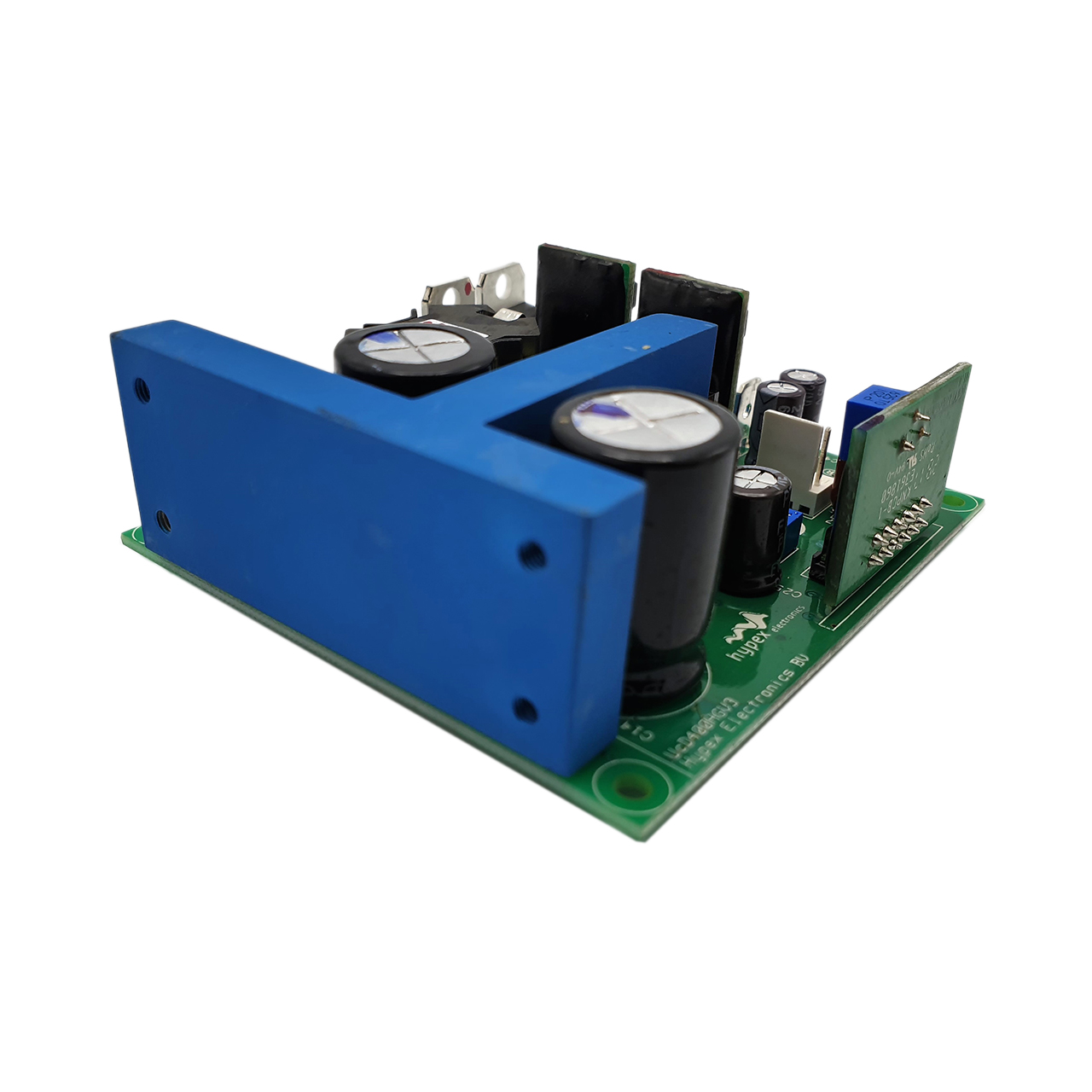

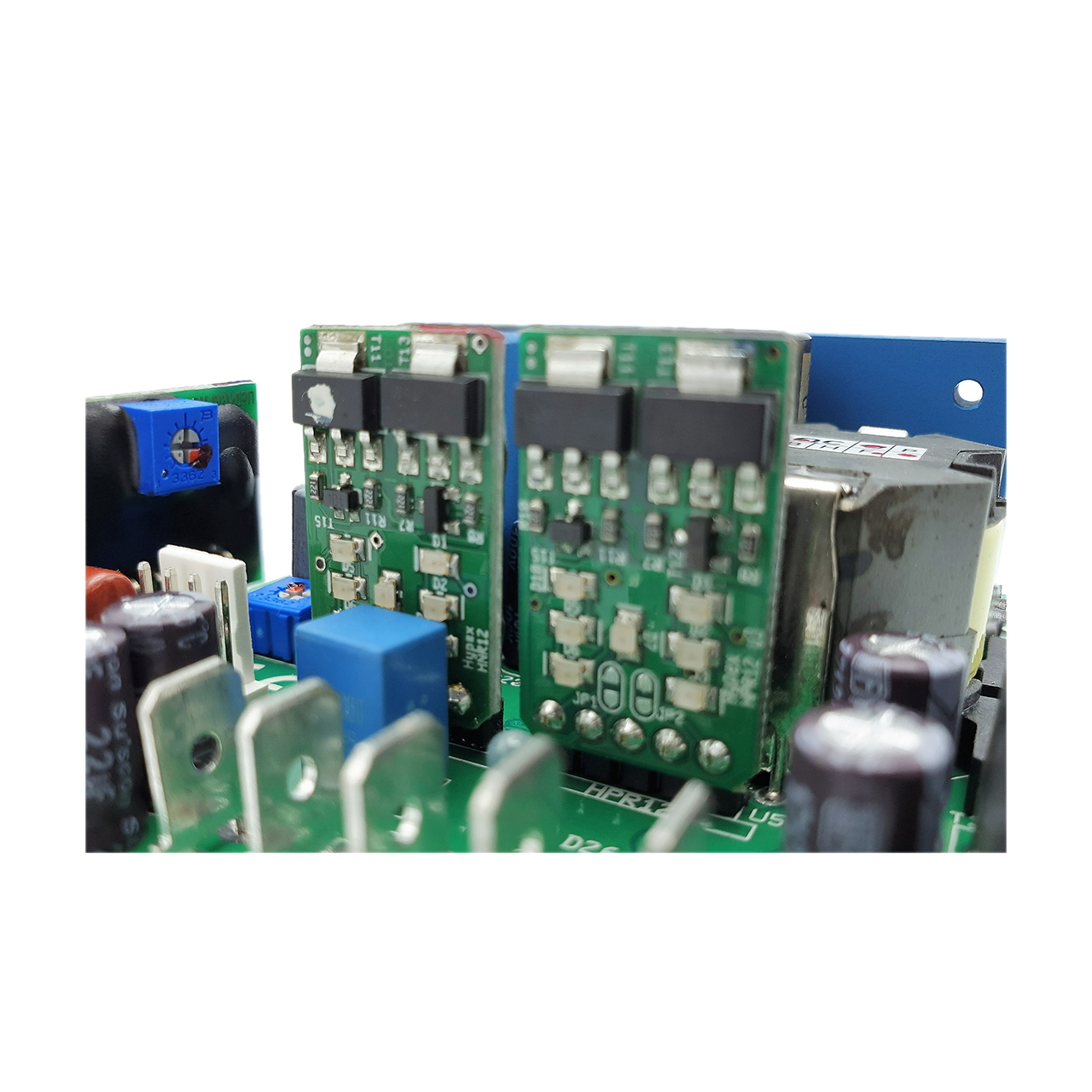

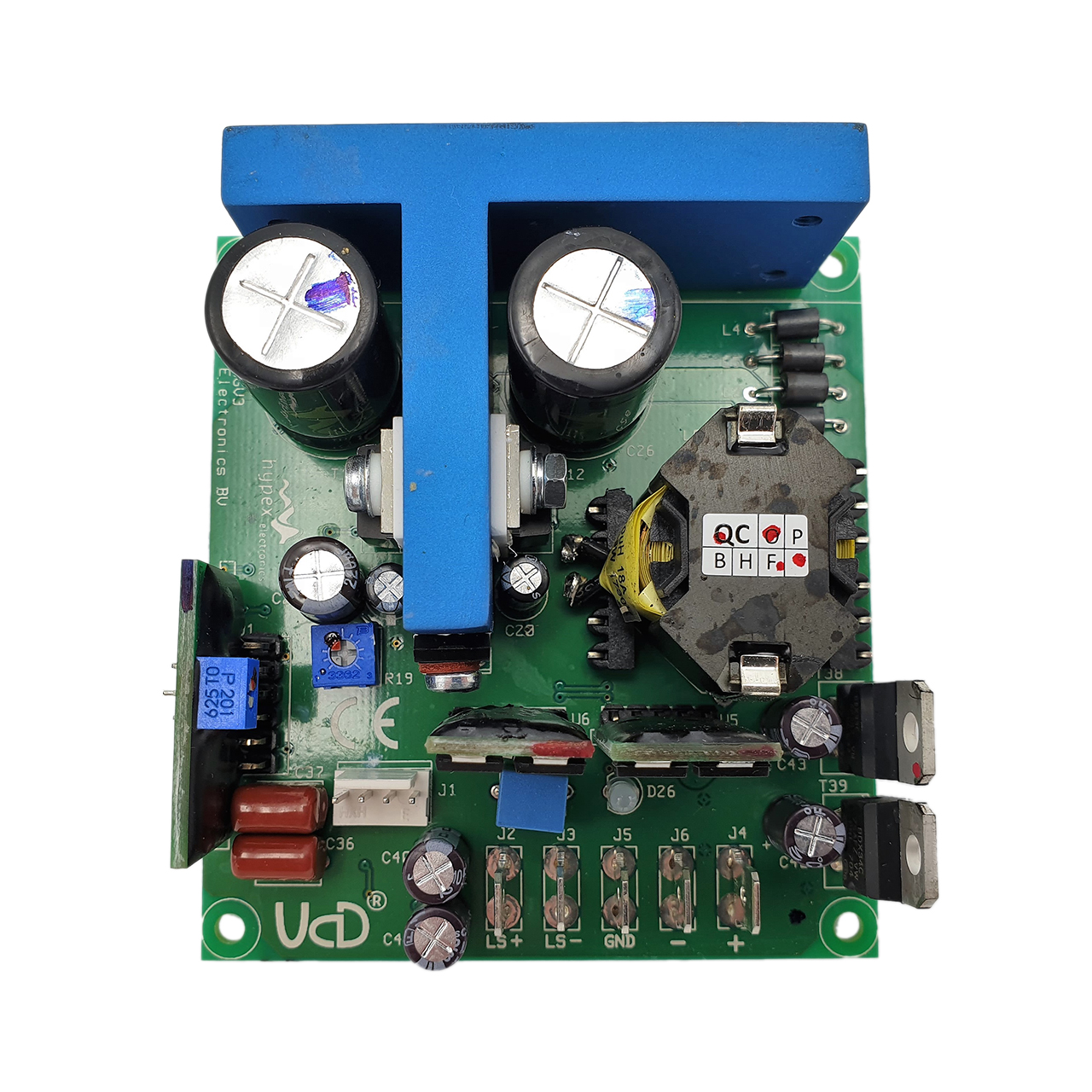

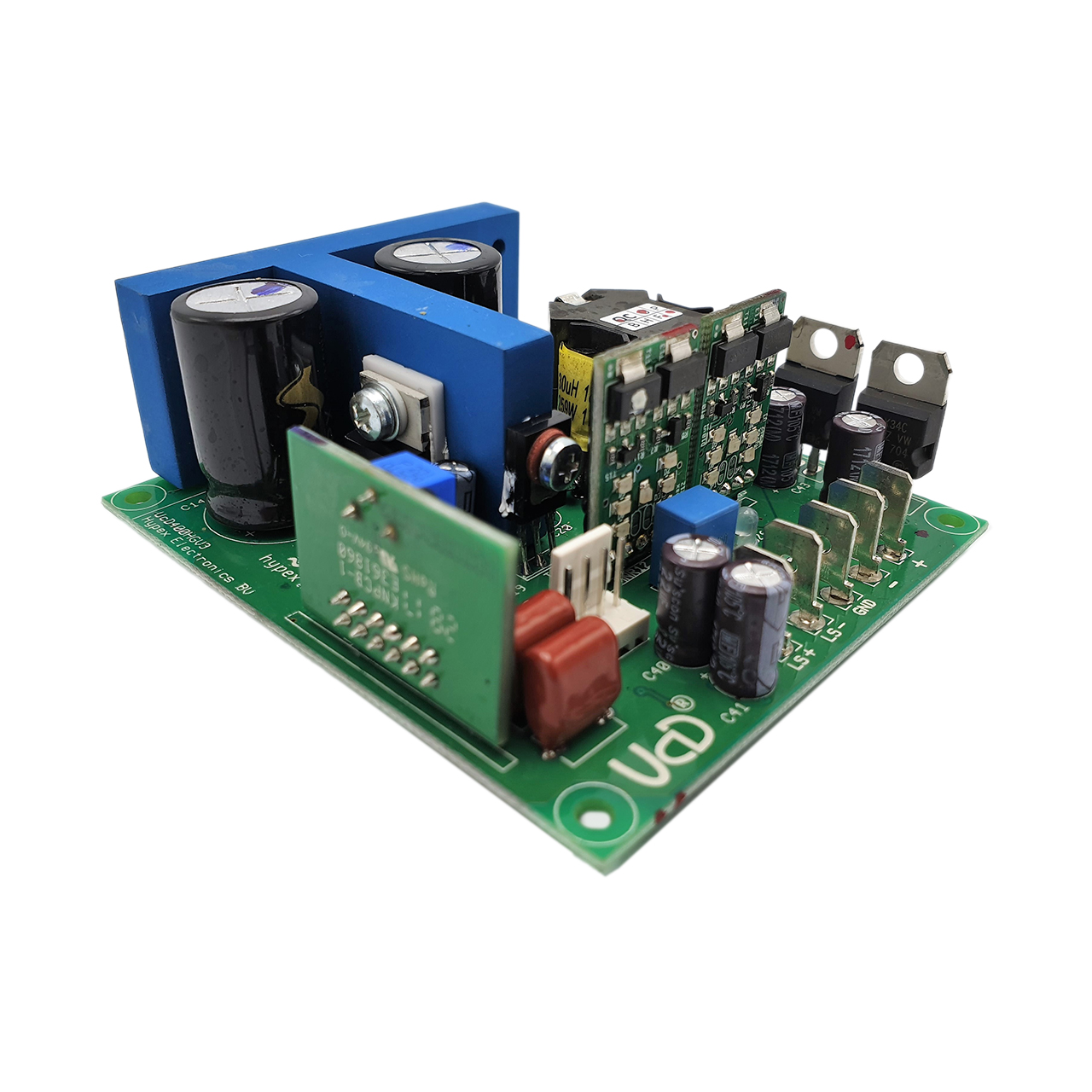

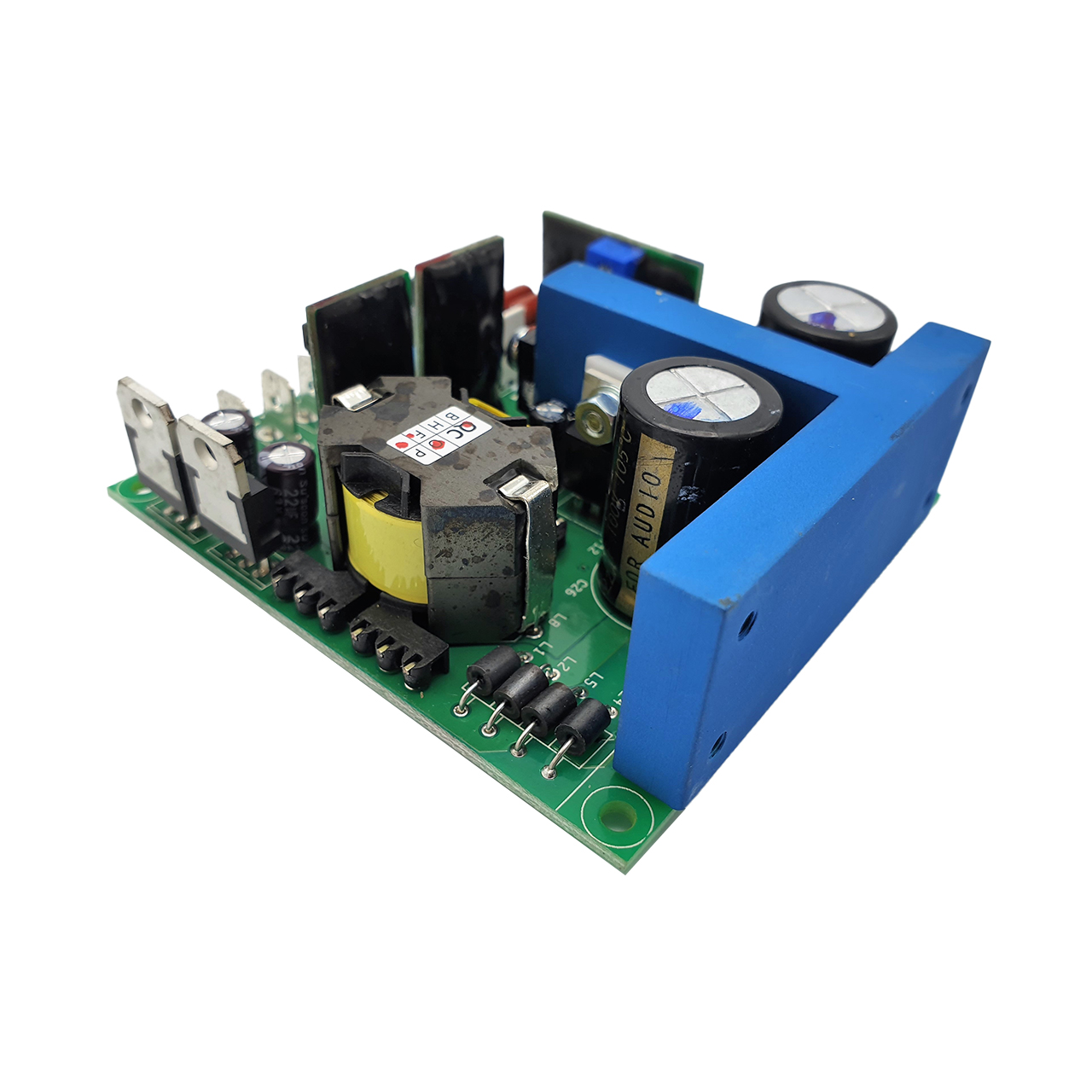

UcD400HG with HxR

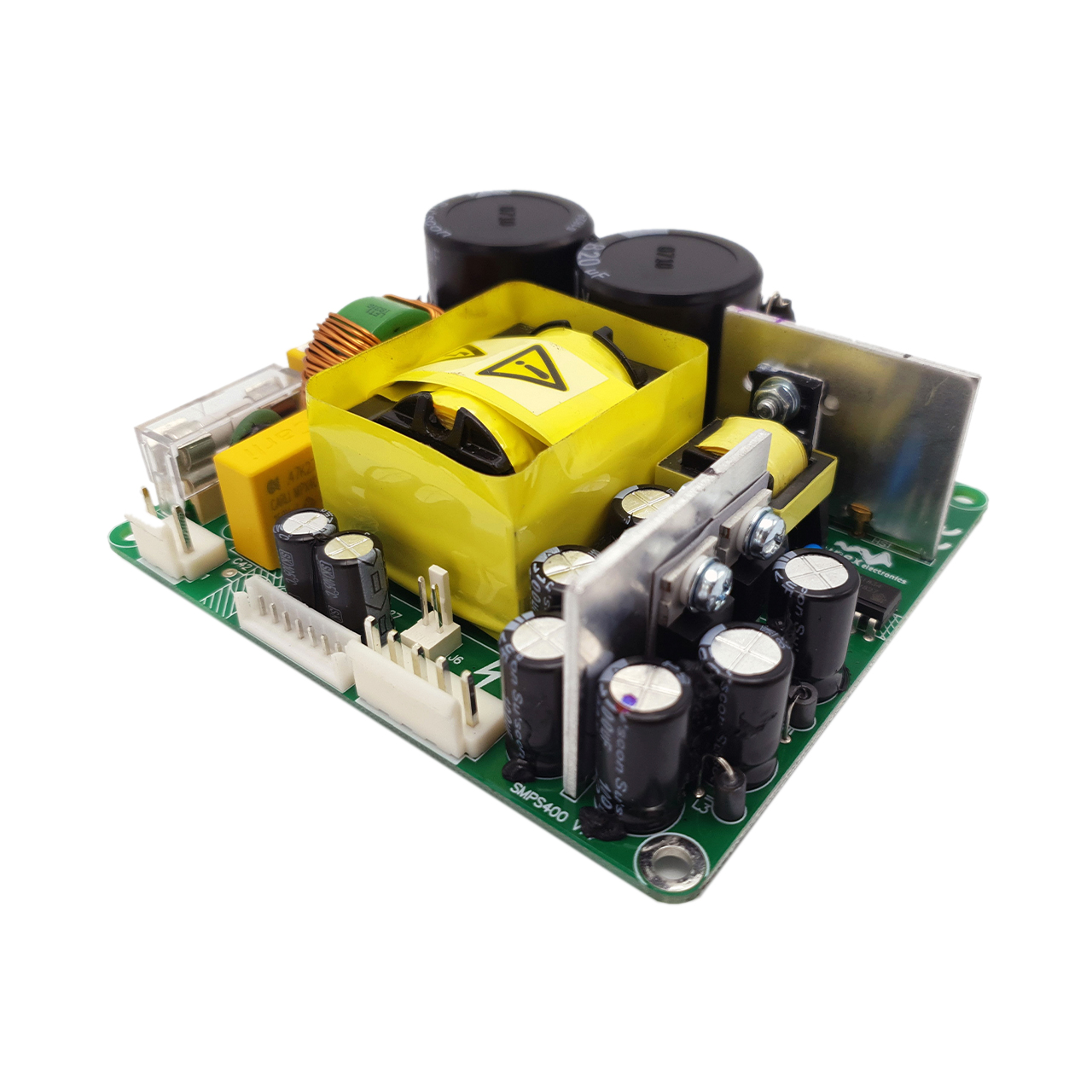

The SMPS400 stands out as a highly efficient Safety Class 2 switch mode power supply explicitly crafted for seamless integration with our UcD™, NCORE® and NCOREx® amplifier modules. Noteworthy attributes include exceptional efficiency across the entire load spectrum, an exceptionally compact form factor, minimal weight, and remarkably low levels of both radiated and conducted electromagnetic interference (EMI). Distinguishing itself further, the SMPS400 incorporates advanced overcurrent protection mechanisms. In the event of a temporary overload, it intelligently diminishes the output voltage. Only when the overload persists for an extended duration does the supply transition into hiccup mode, maintaining this state until the overload resolves. This unique feature, coupled with large electrolytic buffer capacitors, empowers the supply to deliver substantial dynamic headroom power to the connected amplifier. Moreover, the SMPS400 encompasses an auxiliary isolated supply and a control circuit seamlessly interfacing with our UcD™, NCORE® and NCOREx® amplifier modules. Activation for routine operation or disconnection during a critical fault is executed through built-in actuators, providing a reliable safeguard. From the initial design phase to the final implementation, the SMPS400 undergoes optimization to achieve the low EMI signature essential for the most demanding audio applications. The SMPS400 is designed with a selectable input voltage range, allowing it to accommodate various power input specifications. This flexibility enhances its adaptability to different regions and power grid configurations, making it a versatile choice for international applications. The SMPS400 complies with relevant industry standards and certifications, ensuring that it meets the highest benchmarks for quality, safety, and performance. This commitment to standards reinforces its reliability in professional audio applications. Relevant standards: The SMPS400A100, SMPS400A180 and SMPS400A400 revision 1500 and higher fulfil the requirements of: IEC60065:2014 + A11:2017, IEC62368-1:2014 + A11:2017, UL62368-1:2014 Ed.2 and CSA C22.2#62368-1:2014 Ed.2. The SMPS400 is an ETL listed component for the USA (UL62368-1:2014 Ed. 2) and Canada (CSA C22.2#62368-1:2014 Ed.2). HIGHLIGHTS • High efficiency • Small form factor • Low EMI FEATURES • Selectable input voltage range • Remote controlled operation • 3 variants available: A100 / A180 / A400 PROTECTIONS • Advanced Overcurrent protection • Over temperature protection • DC detection input POSSIBLE APPLICATIONS • Active Loudspeakers, for home and professional use • Power Amplifiers, for home and professional use • Line Array and Immersive Systems • Home Theatre Systems • Multichannel Power Amplifiers Notes: The SMPS400A100 is not available for DIY customers. NCORE® and NCOREx® amplifier modules are not available for DIY customers.

The cable set SMPS400 is a complete set of cables to connect the SMPS400A180 or the SMPS400A400.

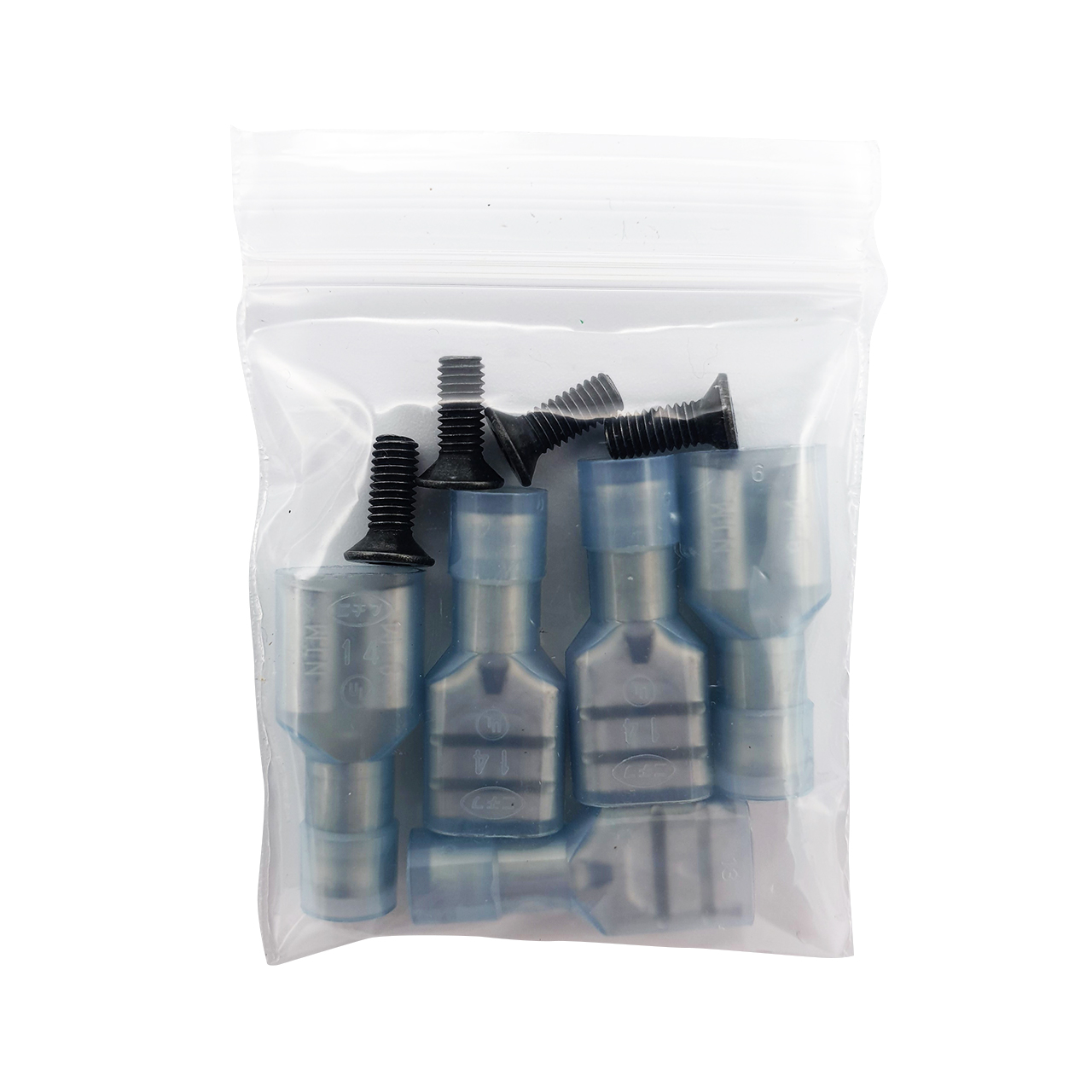

*** This product is discontinued *** The DIYclassD UcD400 stereo kit is probably the best and most easy way to get a high-end HiFi system in your livingroom for a very affordable price. The KIT is designed with an easy to use mindset. Anyone can build it and enjoy the sound in the shortest time possible. Everything is there: 2pcs UcD400 with HxR, SMPS400A400, chassis, cables. You don't even need to solder, we did it for you. Internal size: 193mm(W) x 58mm(H) x 265mm(D) External size: 200mm(W) x 79mm(H) x 280mm(D) (size incl feet, excl connectors) THIS KIT CONTAINS Complete Hypex DIY case 2pcs UcD400HG with HxR SMPS400A400 Complete internal cable harness Mounting plate All required connectors All required mounting materials Complete comprehensive manual NOT INCLUDED IN THE KIT Power cable Loudspeaker cables Interconnects Tools as described in the manual
