Nilai500DIY
/Nilai® Class D technology is here!
Whether you are a dedicated audiophile or a DIY enthusiast looking to build your own high-performance amplifier, the Nilai500DIY amplifier module is the perfect choice. It combines robust power, high efficiency, and superior sound quality in a compact package that is easy to use and integrate into any custom build.
This massive performance boost results in distortion figure that are 10 times lower, a power supply noise rejection that is 10 times higher and a reduced output impedance that has dropped by a factor 10. These figures may already sound incredible, wait until you hear them come alive through your speakers!
The Nilai500DIY stands out with its high-power output, delivering up to 500W at 2 ohms, 525W at 4 ohms, and 260W at 8 ohms. With a maximum output current of 25A and a ±70V voltage swing, it can handle dynamic peaks effortlessly, providing an expansive soundstage and deep, controlled bass.
Powered by NILAI® technology, the Nilai500DIY delivers outstanding sound quality with minimal distortion and a high signal-to-noise ratio, ensuring your music is played back with exceptional clarity and detail. The efficient Class D design achieves over 93% efficiency while maintaining top-tier audio fidelity and minimizing heat output and power usage. At idle, the power stage typically consumes just 2.25W, making it an ideal choice for high-performance, energy-efficient audio systems.

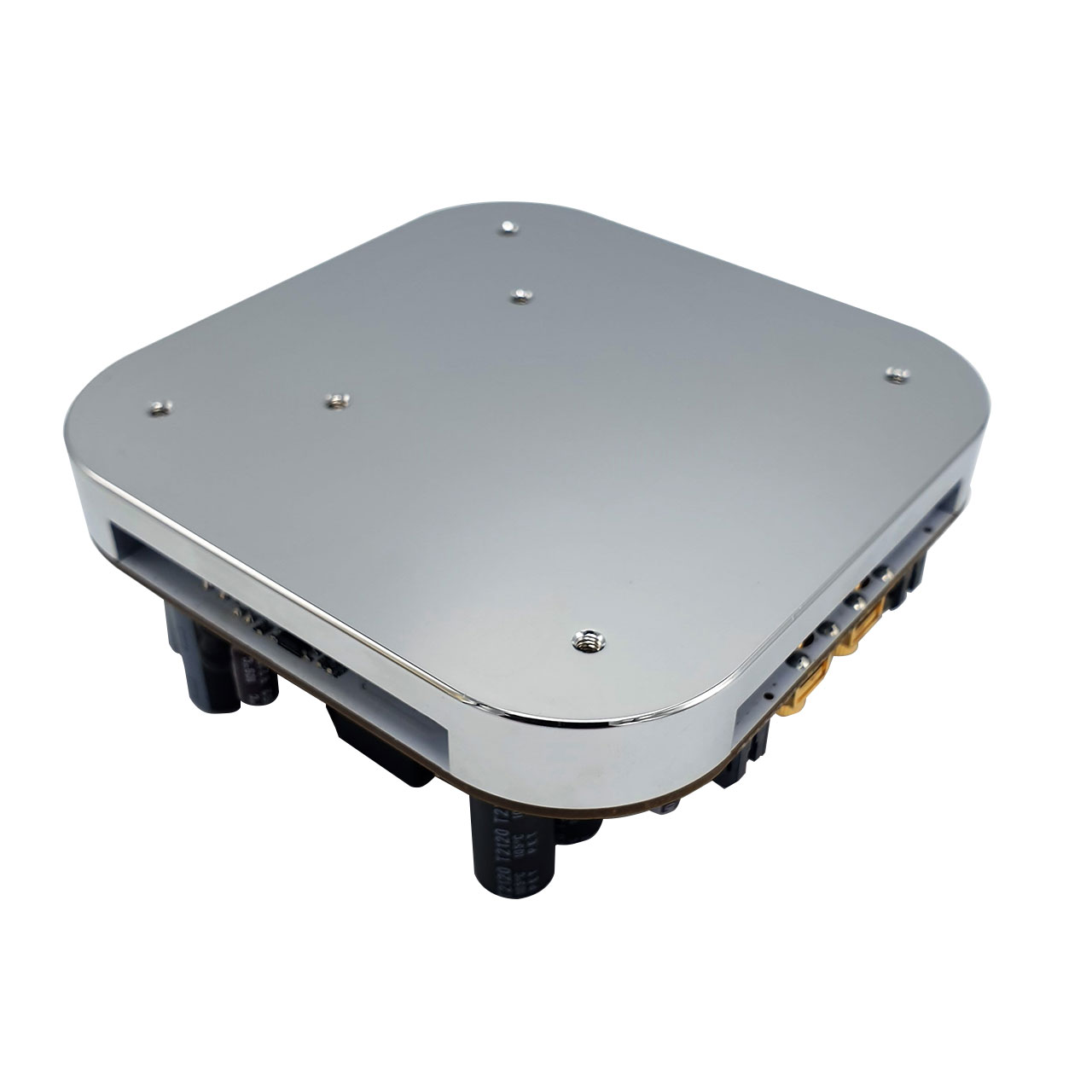

Crafted with precision and care, the NILAI500DIY amplifier module uses carefully selected, high-quality components to ensure the best possible audio performance. Every element is chosen to minimize distortion, maximize efficiency, and deliver exceptional sound clarity, making it the perfect choice for audiophiles who demand the best. Its polished, shiny exterior is a true reflection of what is to be found inside!

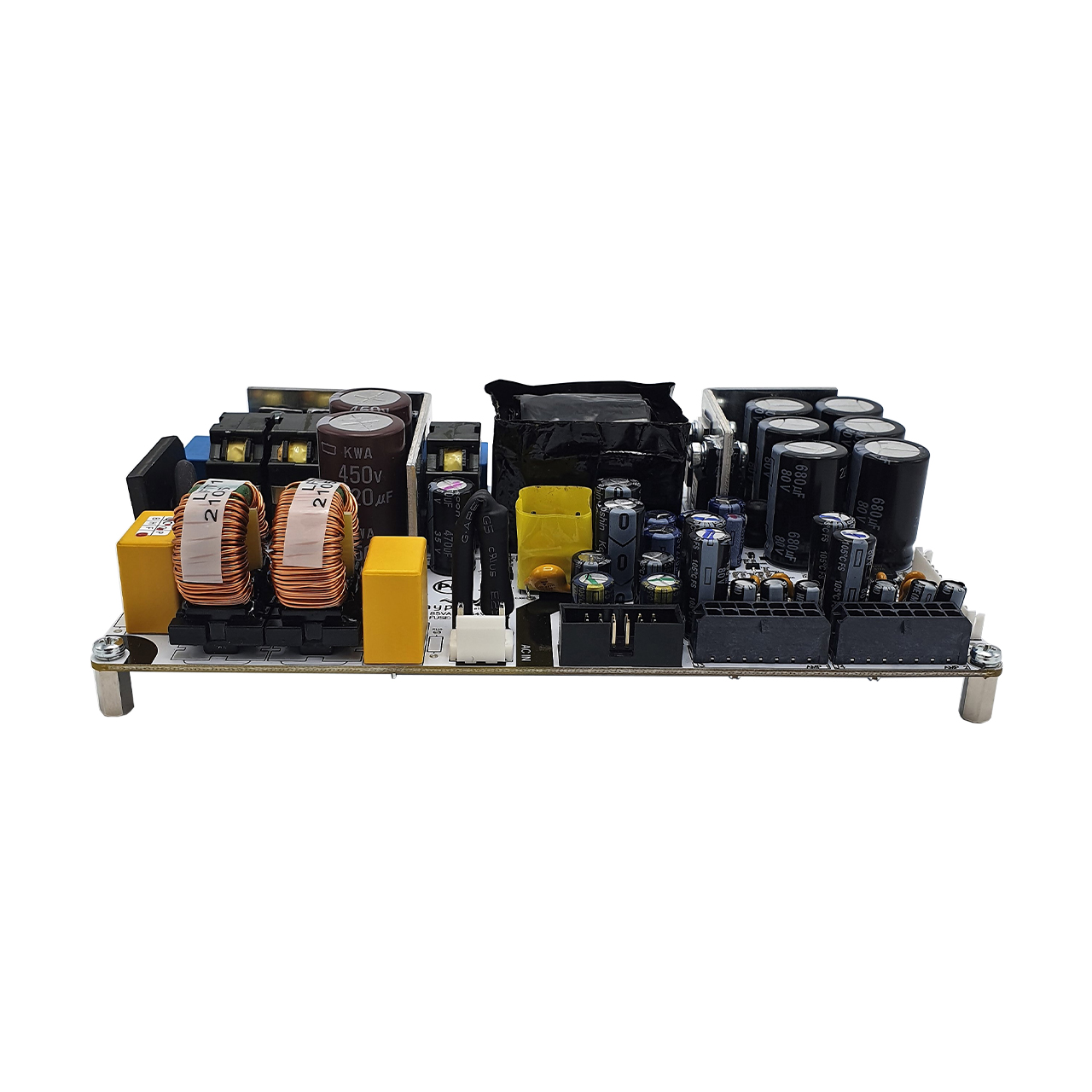

Combining the Nilai500DIY with the matching PS500DIY will result in the best possible read-to-go DIY experience to date!
APPLICATIONS
- • High-end power amplifiers
FEATURES
- • 525W @ 4Ohm
- • THD+N: 0,00015% (-116dB) @ 100W / 4Ohm / 20.000Hz
- • Output noise: 9,5µV @11,8dB gain

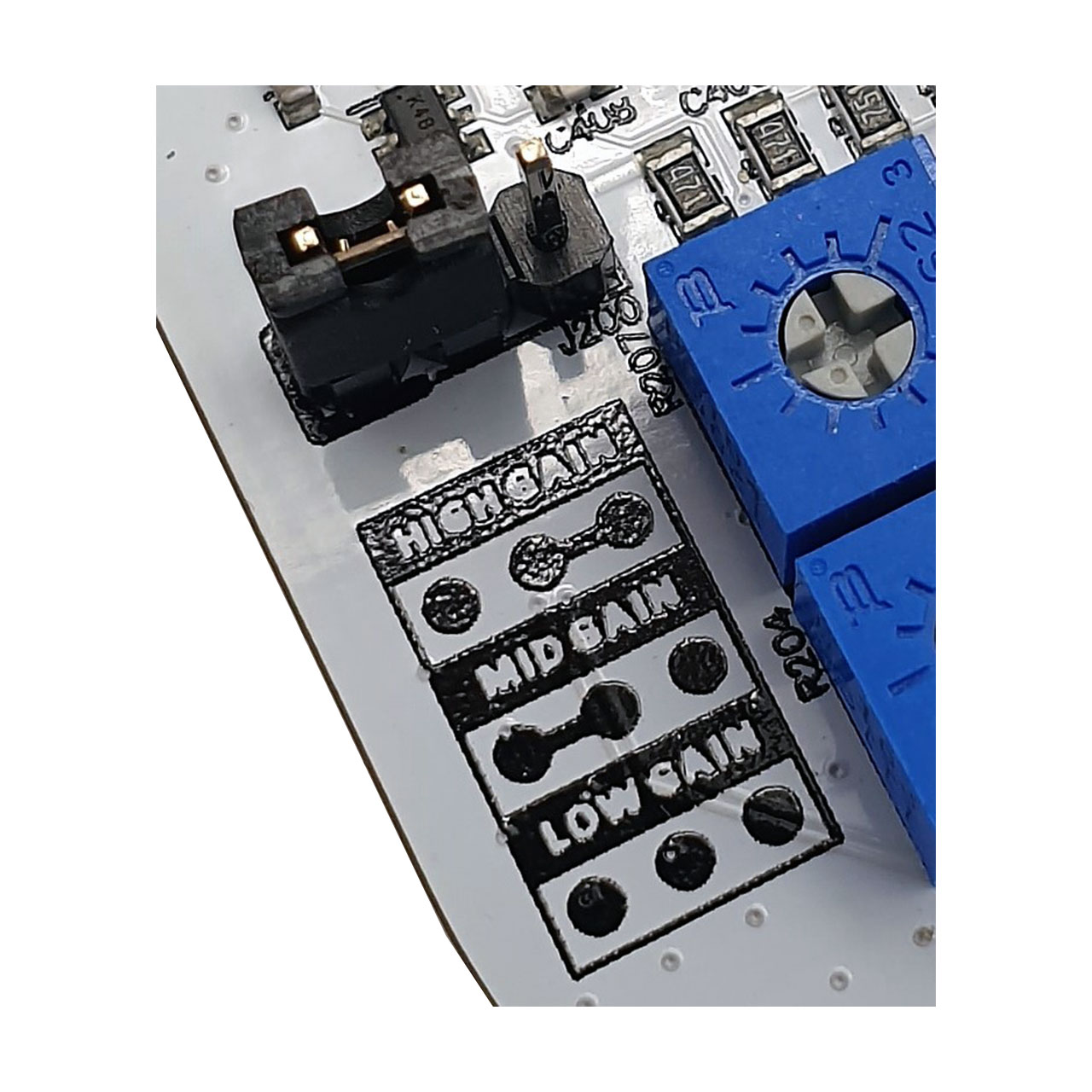

- • Gain adjust in 3 steps (11,8 - 21,8 and 27,8)
- • High fidelity components
- • Discrete buffer stage and regulators
- • Dedicated high-end power supply PS500DIY
- • Also available in mono & stereo kits
CONTENTS OF PACKAGING

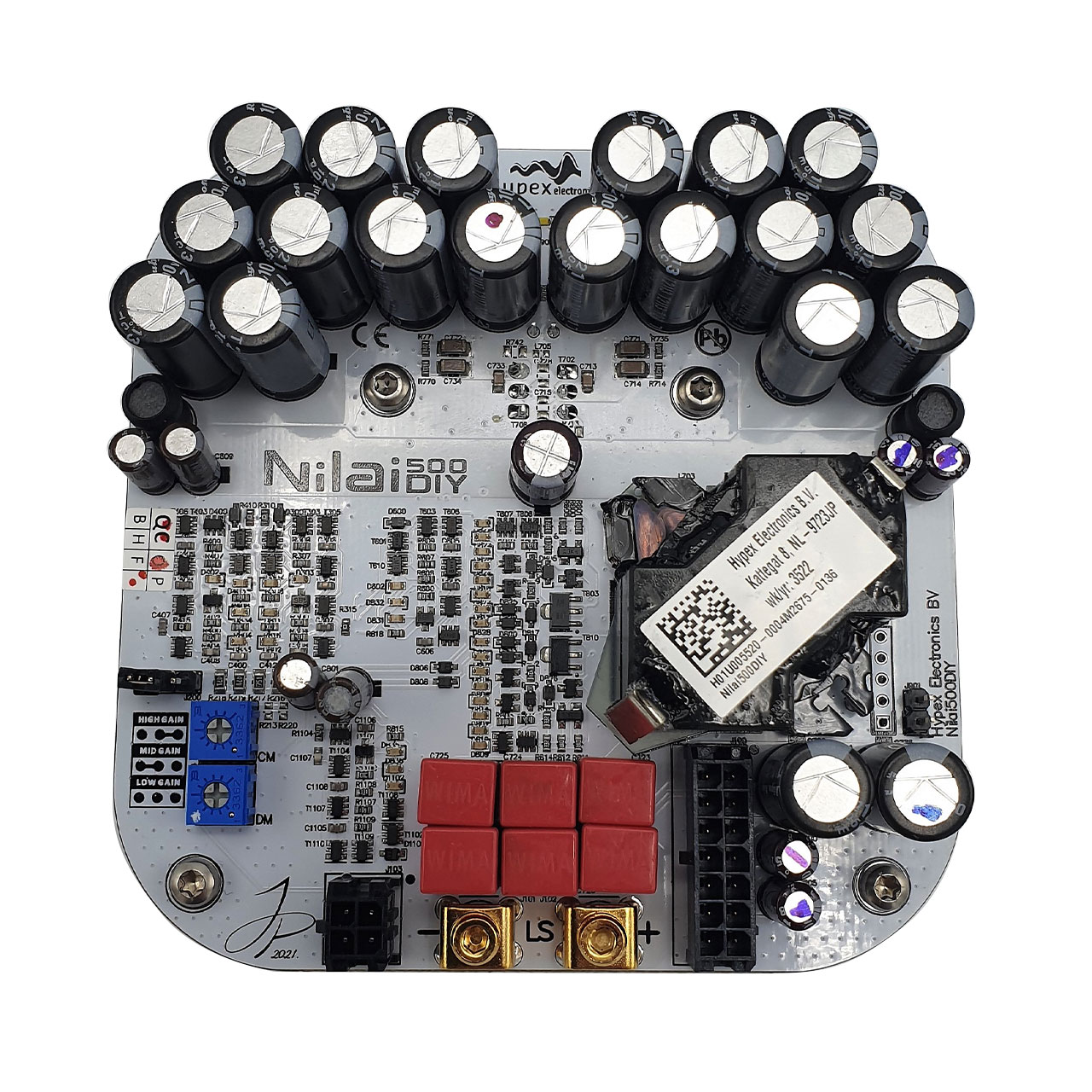

- • Nilai500DIY amplifier module

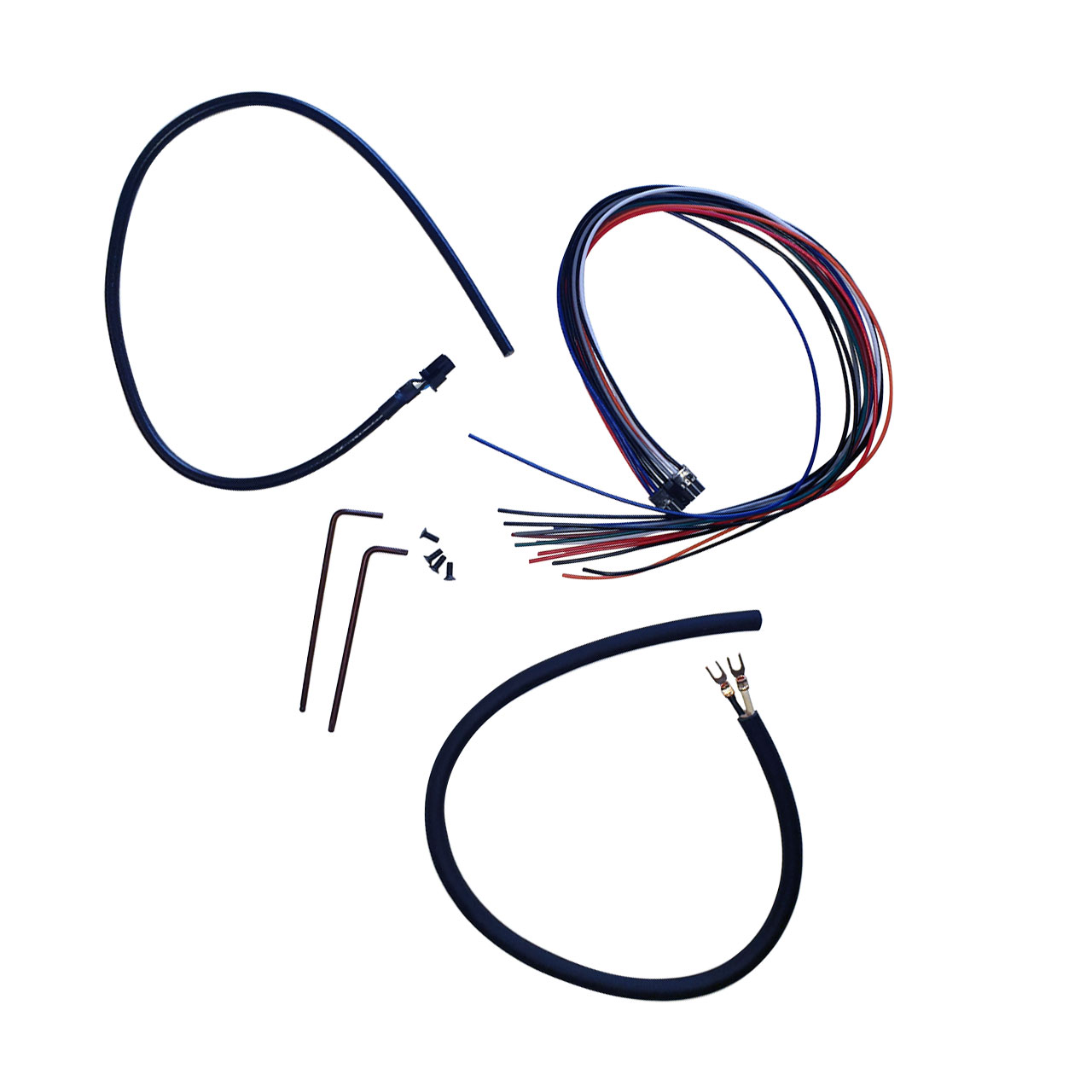

- • Nilai500DIY cable set - part no. K02U006303*
- - 1x Cable asm Z4B50L5 (50cm audio input cable)
- - 1x Cable asm Z2B50L2 (50cm audio output cable)
- - 1x Cable asm Z14A50L1 (50cm SMPS connection cable)
- • Nilai500DIY mounting set
- • Nilai500DIY manual
* not sold separately.
| Output Power (2Ω): | 500W |
|---|---|
| Output Power (4Ω): | 525W |
| Output Power (8Ω): | 260W |
| Channels: | 1 |
| HxR Ready: | On board |
| Compatible SMPS: | PS500DIY |
| Technology: | Nilai® |
| Family: | Nilai® |
