PS500DIY

H02U006433

MSRP:

€250.00

Prices excl. VAT plus shipping costs

In Stock

Downloads

CAD drawings

CAD_Package_PS500DIY_01xx.zip

datasheets

PS500DIY 01xx R3.pdf

Product information "PS500DIY"

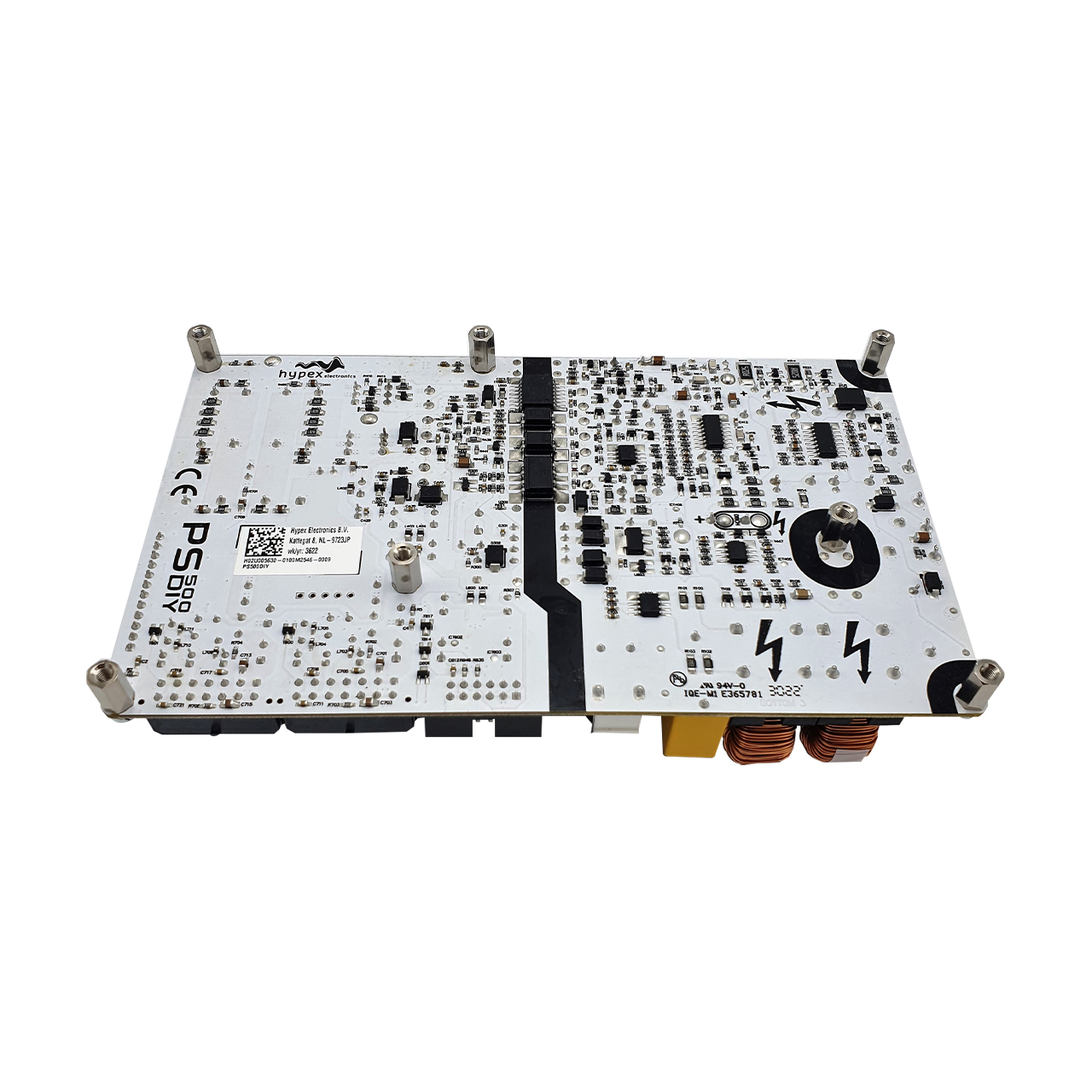

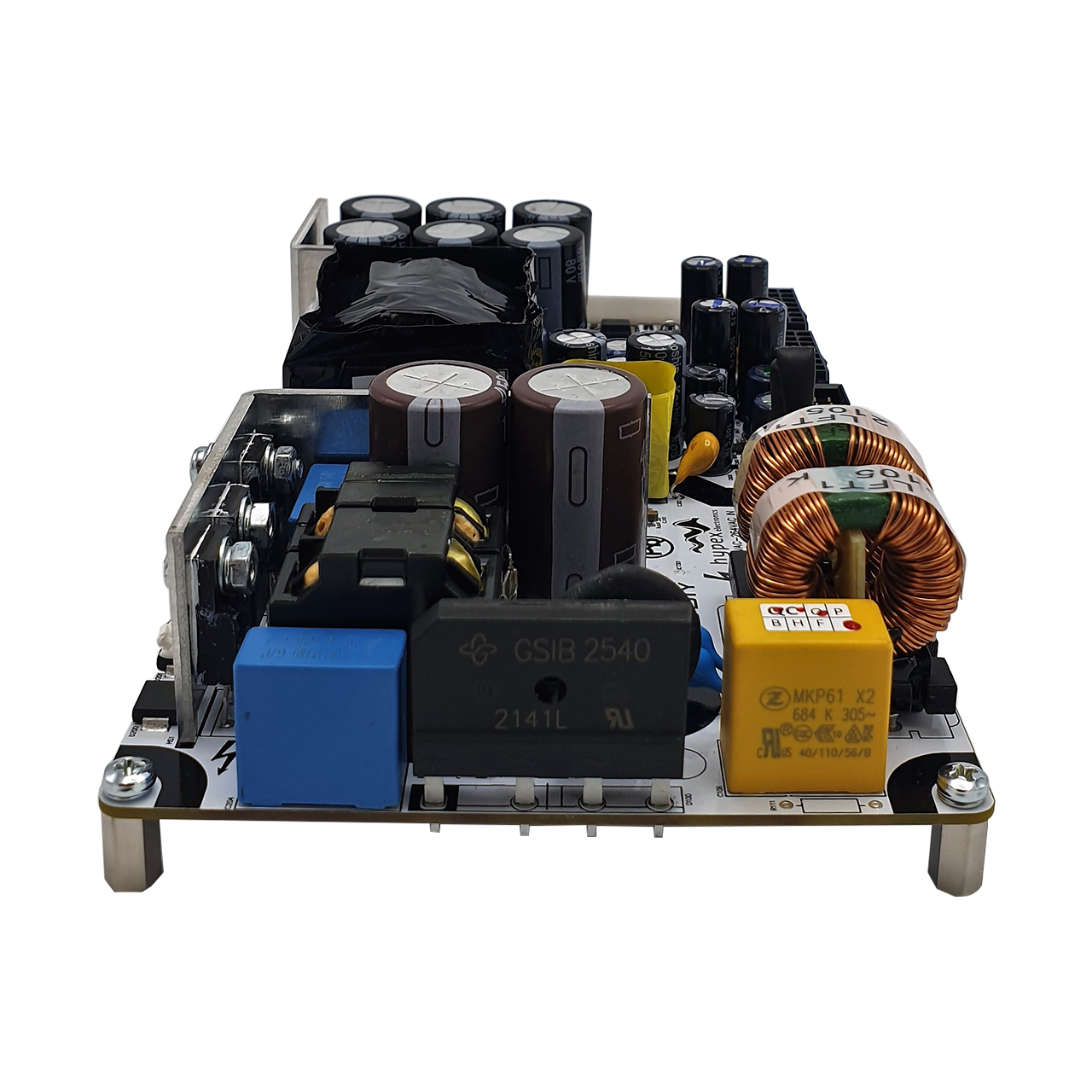

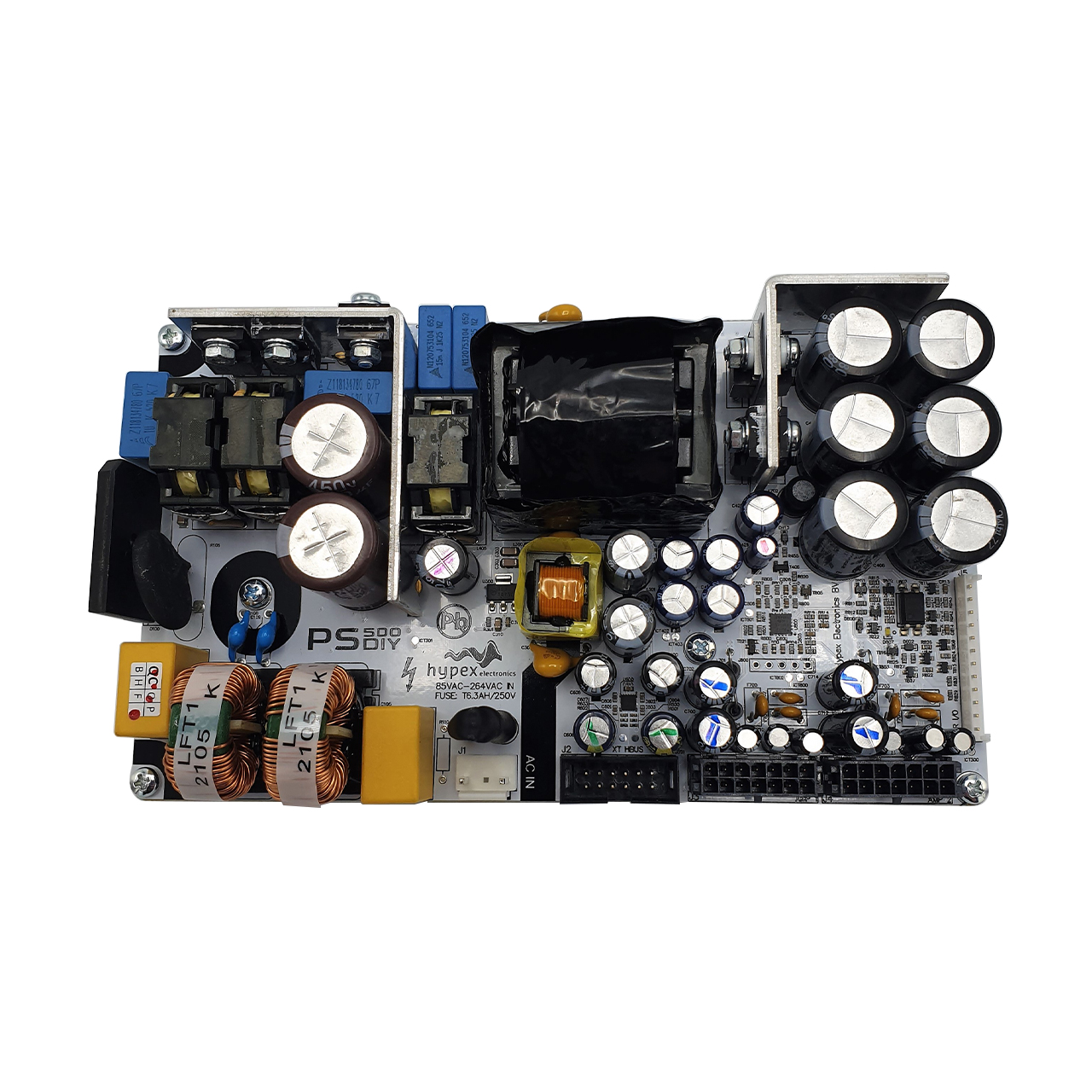

The PS500DIY is a high efficiency Safety Class 2 switch mode power supply specifically designed to be used in combination with single or dual Nilai500DIY modules. Key features are high efficiency over the entire load range, use of audiofile components and interleaved PFC for increased power density and lower conducted EMI.

The PS500DIY features a comprehensive over current protection. When an overload condition remains for a longer period of time, the supply voltage gradually decreases until entering hiccup mode. Universal mains capability ensures reliable operation across the globe. Sturdy Molex® connectors provide a solid connection to the amplifier modules while the user has control over on/off operation through the I/O and HBUS connectors.

The user accessible 5V standby and symmetrical auxiliary supply enables the user to connect third party electronics which makes the PS500DIY ideal for DIY purposes.

HIGHLIGHTS

• High End Audio Amplification
• Interleaved PFC Stages
• Supplies Single Or Dual Nilai500 Amplifiers
• Universal Mains Input
• 2013 ErP Lot 6 0.5W Standby Supply

CONTENS OF PACKAGING

• PS500DIY amplifier module
• PS500DIY cable set - part no. K02U006302^*
- • 2x Cable asm Z14A30L2 (30cm amplifier connection cable)
- • 1x Cable asm Z12C30L1 (30cm auxiliaries' cable)
- • 1x Cable asm Z2B30L3 (30cm power input cable)
• PS500DIY mounting set
• PS500DIY manual

^*not sold seperately

Output Power:	600W
Idle Power:	5.5W
Short Term Output Power:	800W
Standby Supply:	5V/1A
Standby Power:	less than 0,5W
Output voltage:	±70V
Auxiliary Supply:	±18V/200mA
