NC400
H01U001376

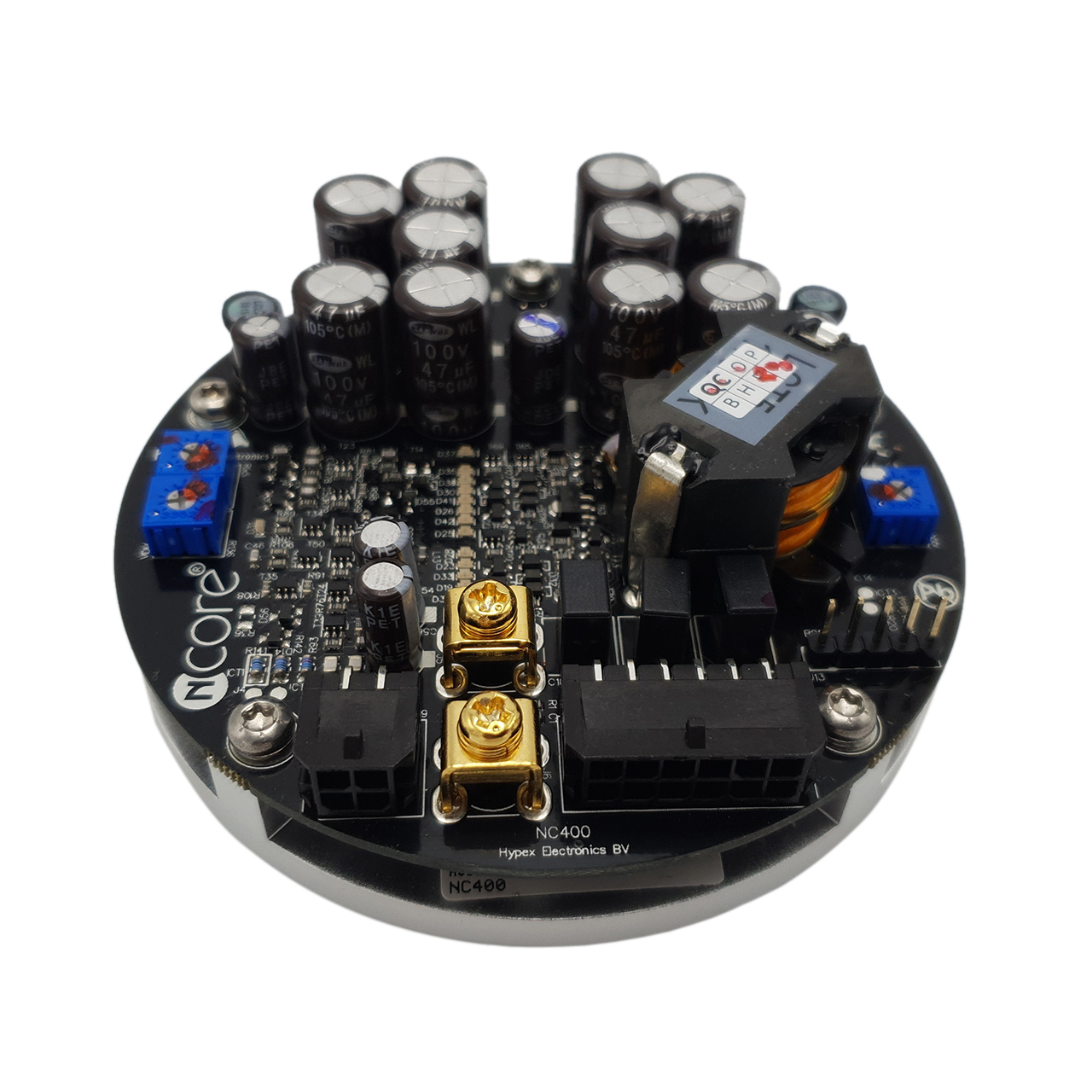

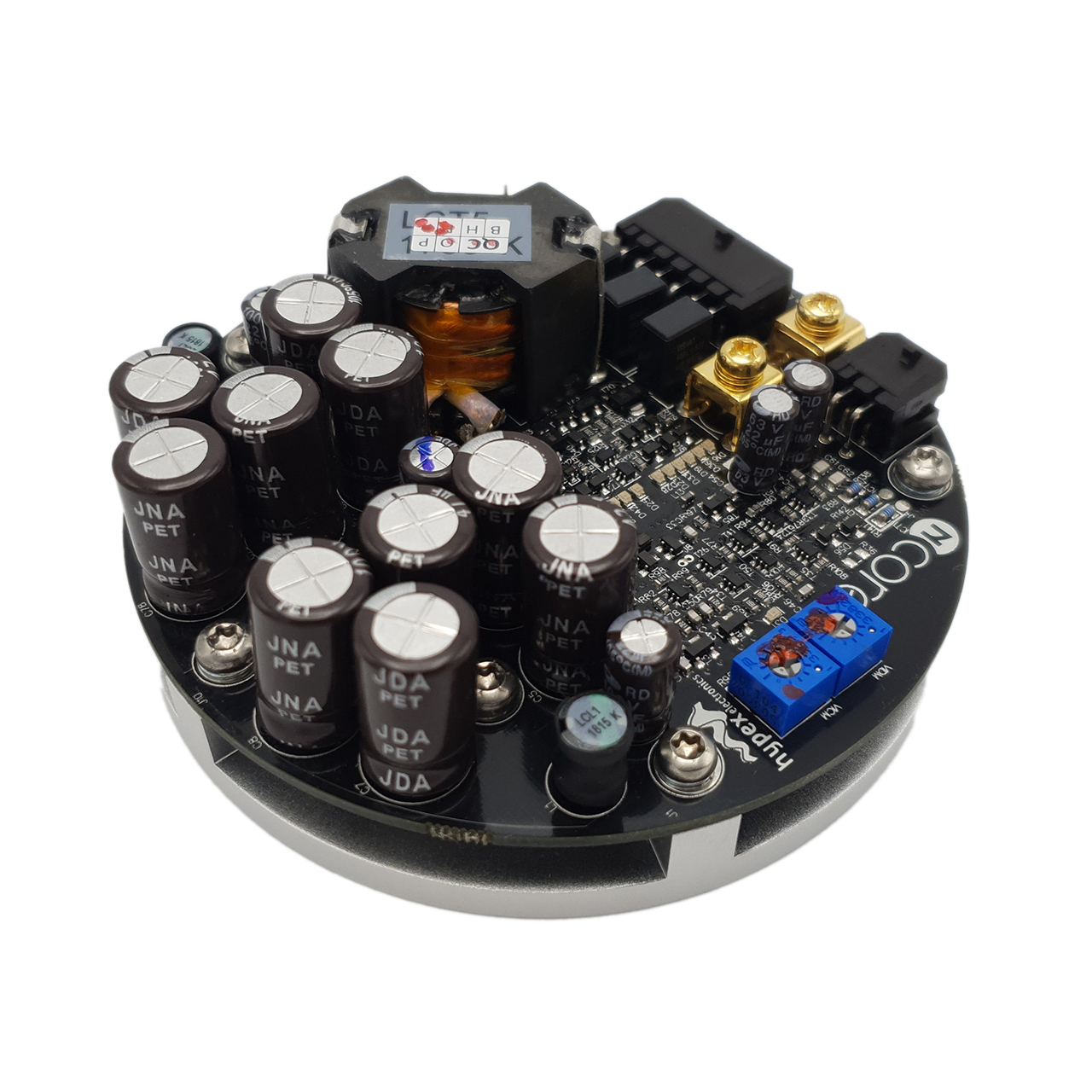

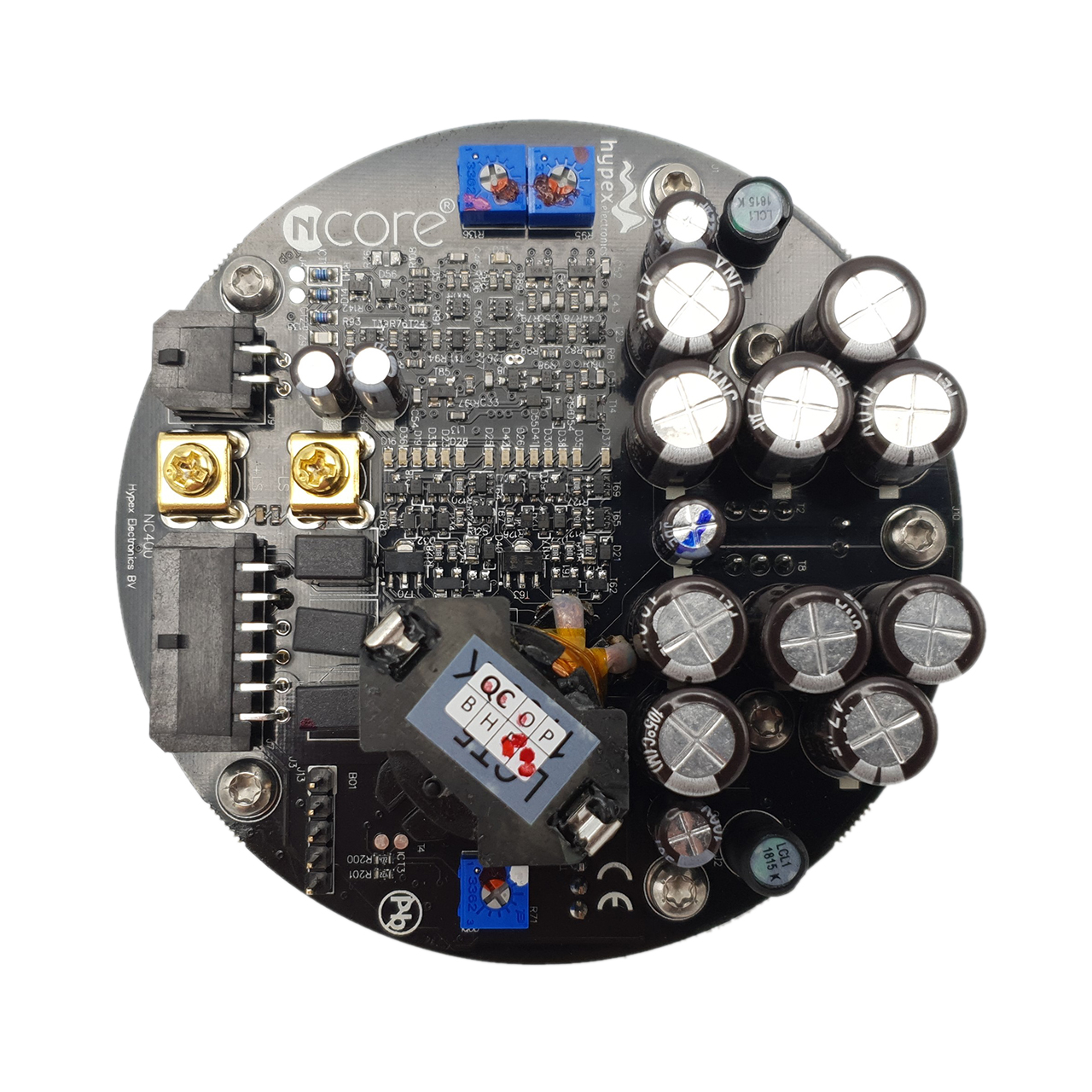

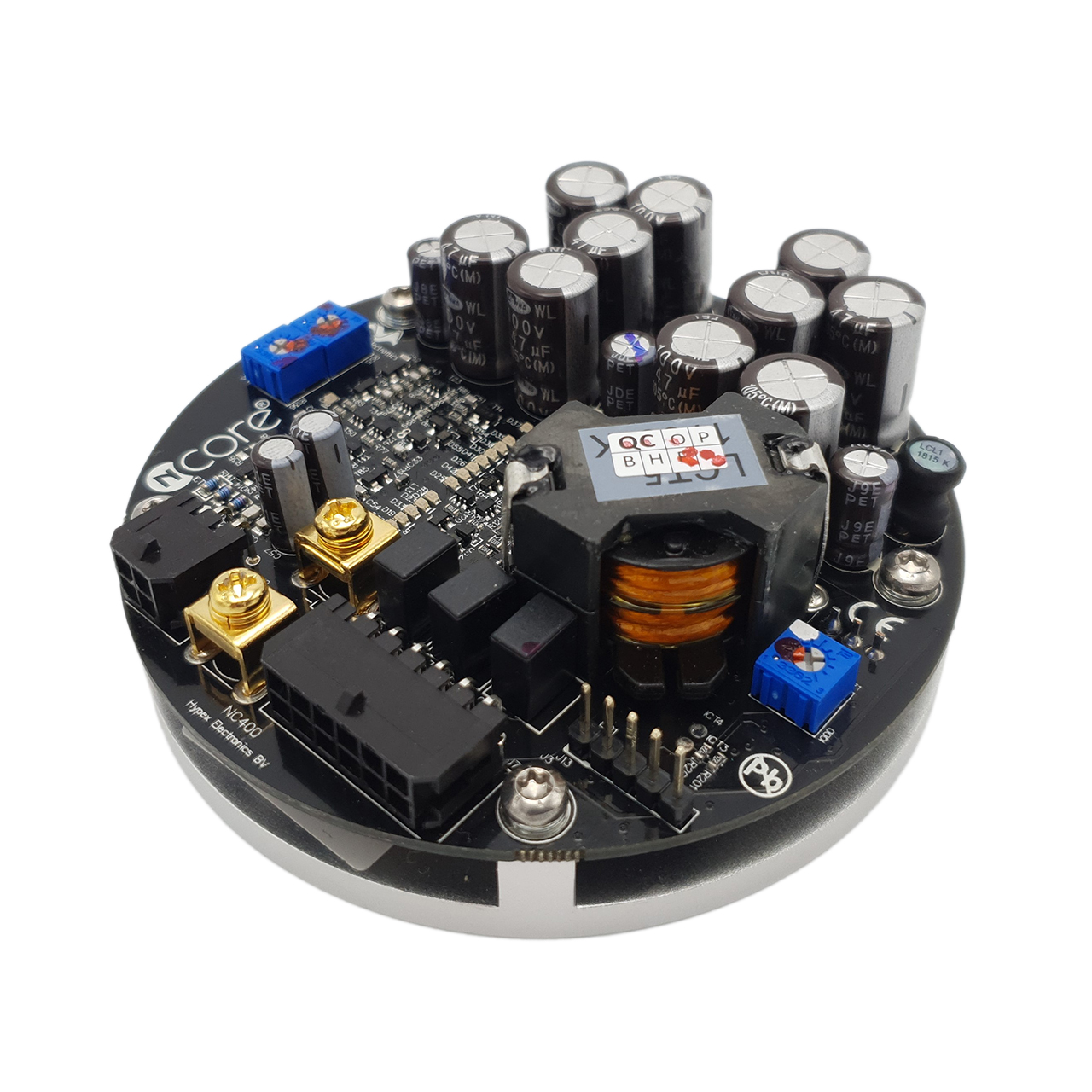

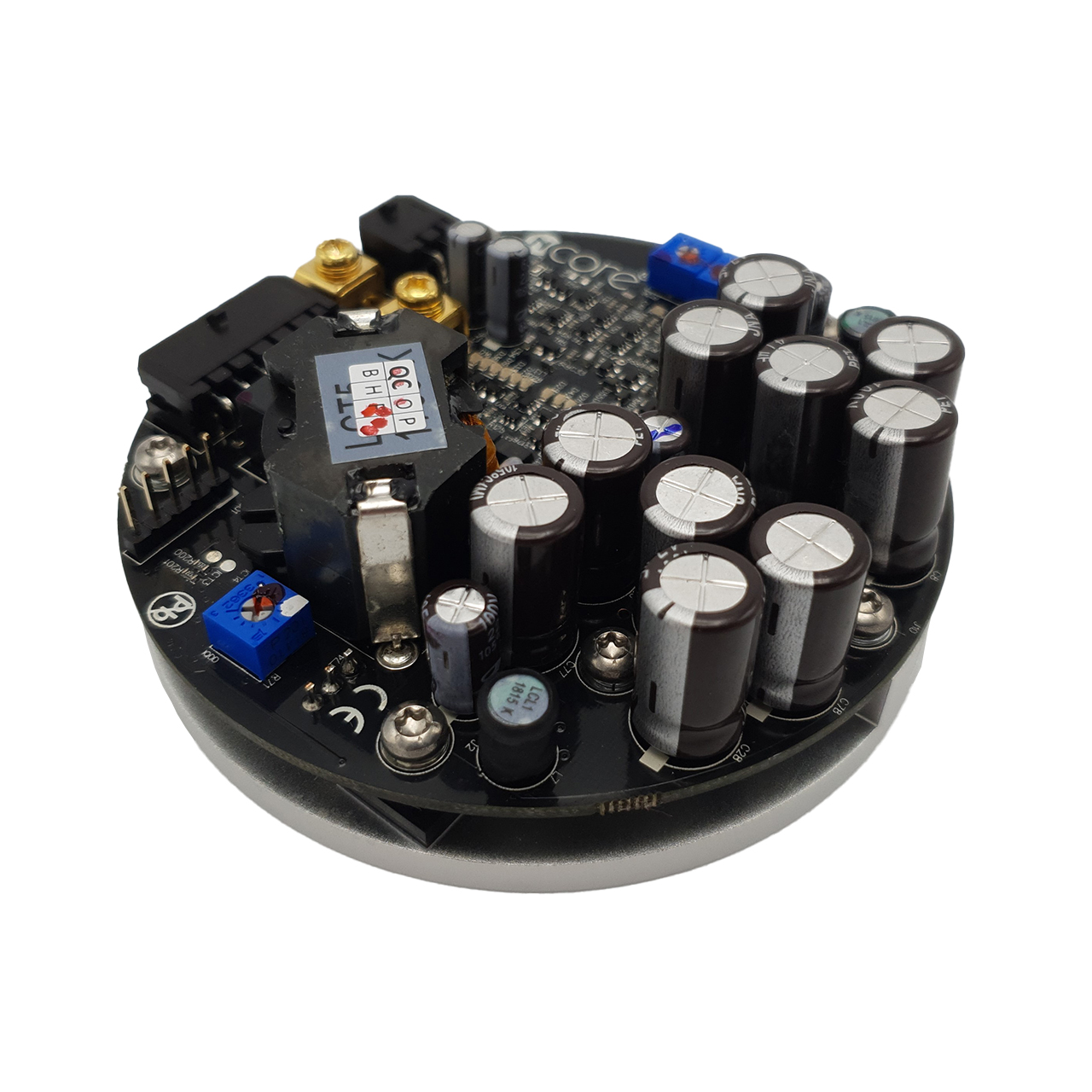

Product information "NC400"
The NC400 packs a feature set never seen before in a modular amplifier product. The NC400 module's audio performance sets new standards,regardlessof operating class or circuit technology. Distortion (THDand IMD) over the full audio and power range is negligible, typically below 0.0007%. Distortion at listening levels (1W) is unmeasurable. This amp adds neither dirt nor fairy dust.
APPLICATIONS
- High-end active loudspeakers High-end stand-alone power amplifiers
FEATURES:
- Transparent, fully discrete input circuitry
- HxR style regulators on board
- Differential inputs with high common-mode impedance
- Overcurrent protection
- Supply overvoltage/undervoltage protection on all rails
CONTENTS OF PACKAGING:
- NC400 amplifier module
- Mount set NC400
- Cable set NC400 (incl. Ncore signal cable)
- Manual
RECOMMENDED ADDITIONAL PARTS:
- Power Supply SMPS600N400 (1x NC400)
- Power Supply SMPS1200A400 (2x NC400)
| Output Power (2Ω): | 580W |
|---|---|
| Output Power (4Ω): | 400W |
| Output Power (8Ω): | 200W |
| Channels: | 1 |
| HxR Ready: | On board |
| OpAmp: | Discrete |
| Over voltage protection @: | 72V |
| SMPS Voltage +/-: | 64V |
| Under voltage protection: | 35V |
| Compatible SMPS: | SMPS600 |
| Technology: | NCORE® |
Related products
SMPS600N400
€132.50
The SMPS600N400 is a high efficiency Safety Class 2 switch mode power supply specifically designed to be used in combination with our NC400 module. Key features include high efficiency over the entire load range, extremely small form factor, low weight and very low radiated and conducted EMI. The SMPS600 also features an upgraded over current protection which in case of temporary overload simply reduces the output voltage, only when the overload condition remains for a longer time the supply will enter hiccup mode until the overload condition disappears. This feature combined with large electrolytic buffer capacitors leads to the capability of delivering high dynamic headroom power to the connected amplifier. A new feature in this SMPS is the automatic input voltage selector which accommodates quasi universal mains capabilities. An auxiliary isolated supply to power possible user applications is also included. The supply is triggered for normal operation or latched off in case of a critical fault via in built-in actuators. The SMPS600N400 is optimized from the first phase of design to final implementation to realize the low EMI signature required of the most demanding audio applications.APPLICATIONS:High-end audio amplificationHIGHLIGHTS:High efficiencyAutomatic input voltage selectionExtremely small form factorLow EMIGENERAL FEATURES:Advanced over current protection Remote controlled operationLow weightCompactFixed output voltageCABLE SET INCLUDED:30cm JST VHR-3N with blue and brown wire.20cm JST EHR-7 with 7 wires.20cm Molex 43025-1200 to Molex 43025-1200 to connect to NC400. Mounting set included.

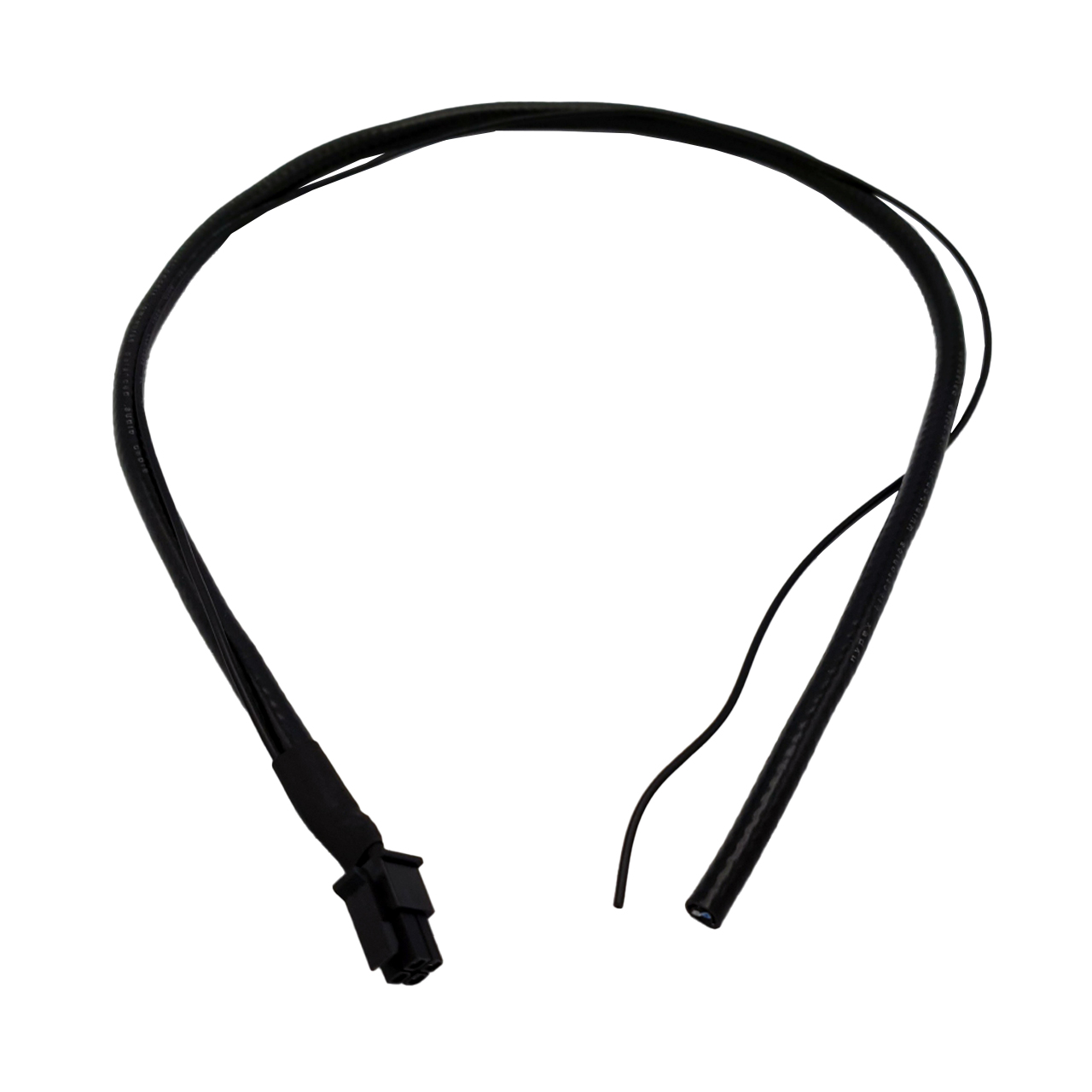

Ncore signal cable
