SMPS600N400
H02U004726
Product information "SMPS600N400"

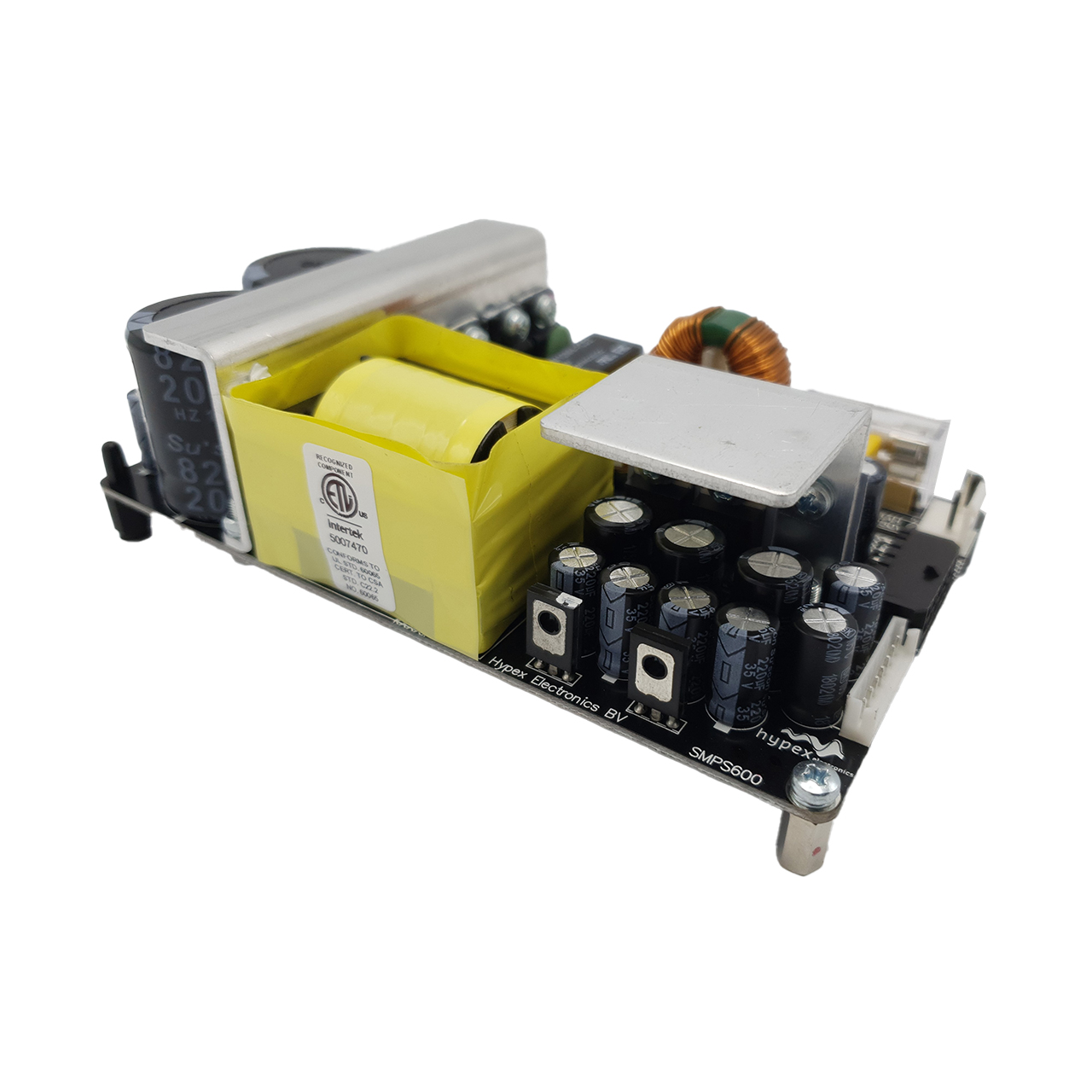

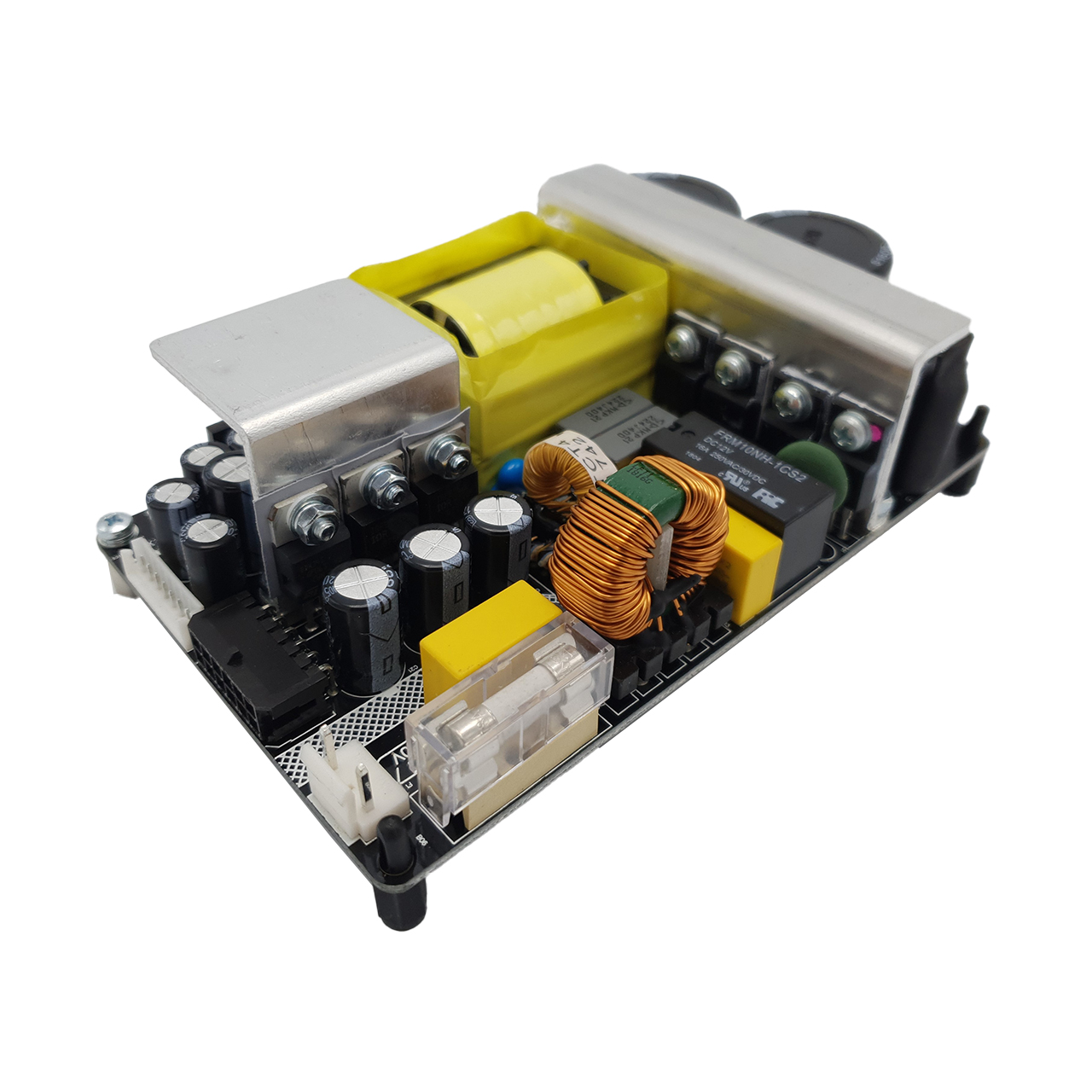

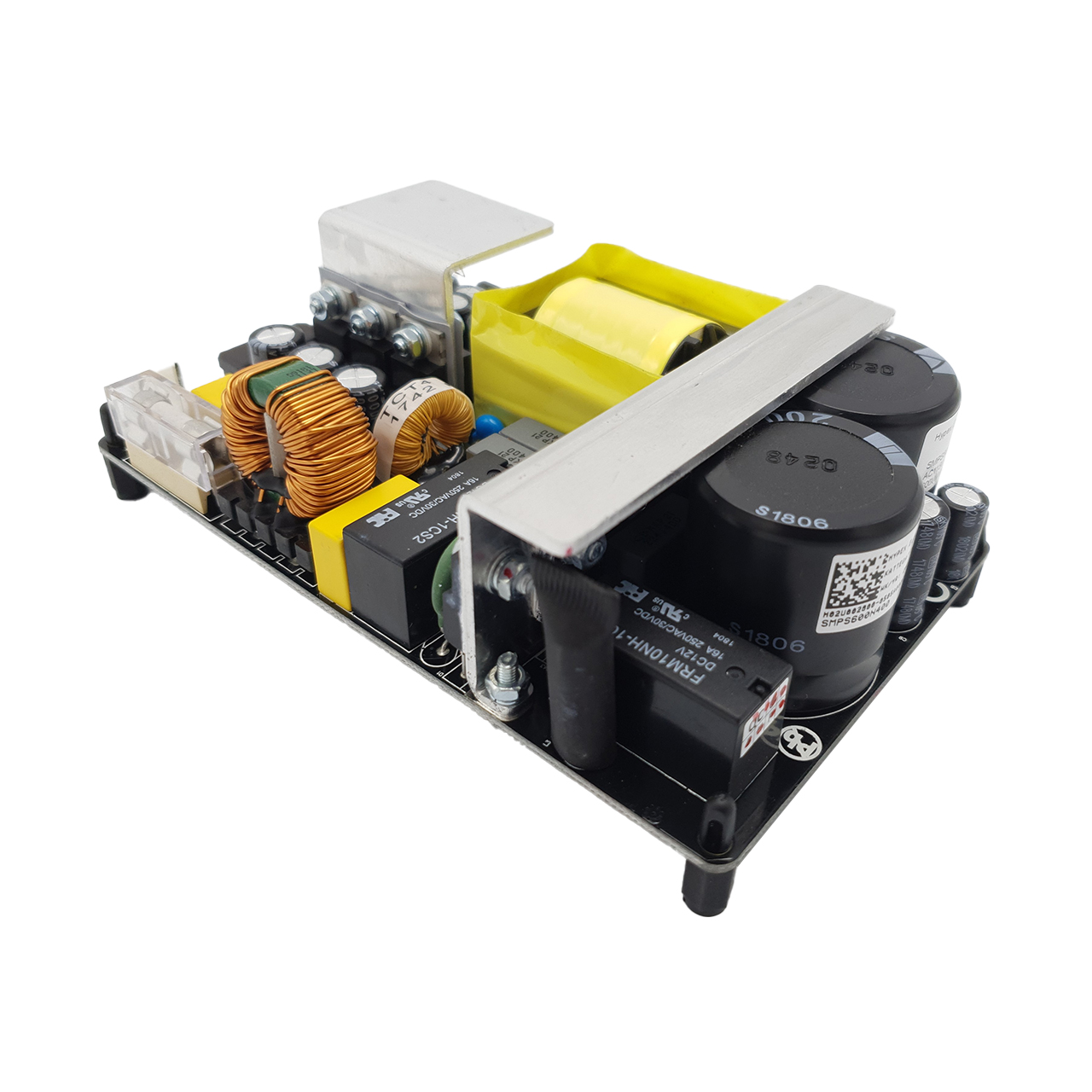

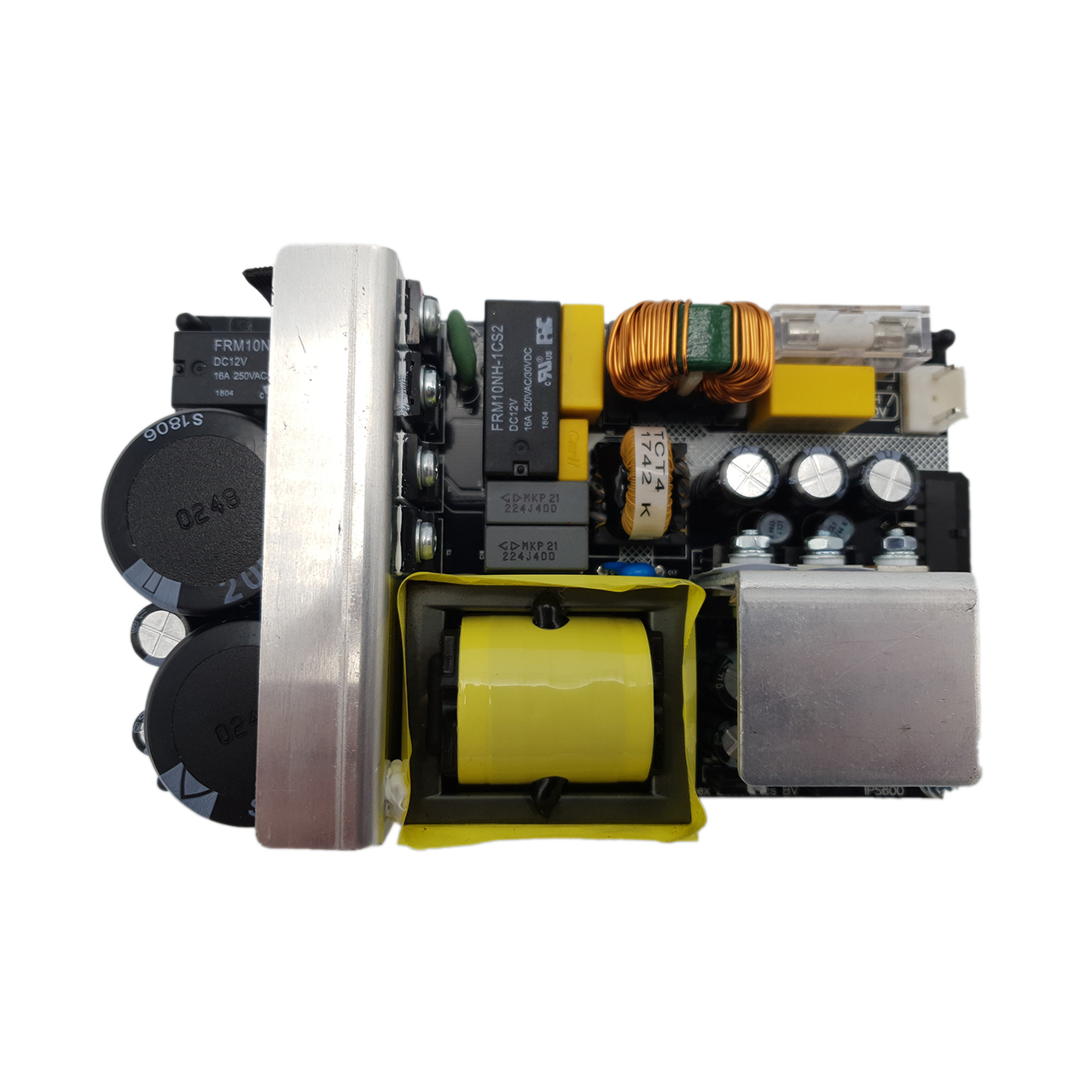

The SMPS600N400 is a high efficiency Safety Class 2 switch mode power supply specifically designed to be used in combination with our NC400 module. Key features include high efficiency over the entire load range, extremely small form factor, low weight and very low radiated and conducted EMI. The SMPS600 also features an upgraded over current protection which in case of temporary overload simply reduces the output voltage, only when the overload condition remains for a longer time the supply will enter hiccup mode until the overload condition disappears. This feature combined with large electrolytic buffer capacitors leads to the capability of delivering high dynamic headroom power to the connected amplifier. A new feature in this SMPS is the automatic input voltage selector which accommodates quasi universal mains capabilities. An auxiliary isolated supply to power possible user applications is also included. The supply is triggered for normal operation or latched off in case of a critical fault via in built-in actuators. The SMPS600N400 is optimized from the first phase of design to final implementation to realize the low EMI signature required of the most demanding audio applications.
APPLICATIONS:
HIGHLIGHTS:
Mounting set included.
APPLICATIONS:
- High-end audio amplification
HIGHLIGHTS:
- High efficiency
- Automatic input voltage selection
- Extremely small form factor
- Low EMI
GENERAL FEATURES:
- Advanced over current protection
- Remote controlled operation
- Low weight
- Compact
- Fixed output voltage
CABLE SET INCLUDED:
- 30cm JST VHR-3N with blue and brown wire.
- 20cm JST EHR-7 with 7 wires.
- 20cm Molex 43025-1200 to Molex 43025-1200 to connect to NC400.
Mounting set included.
| Max Output Power: | 650W |
|---|---|
| Max Output Power @20Hz: | 600W |
| Automatic input voltage selection: | Yes |
| Mains voltage input: | 230V / 115V |
| SMPS Voltage +/-: | 2 x 65V |
