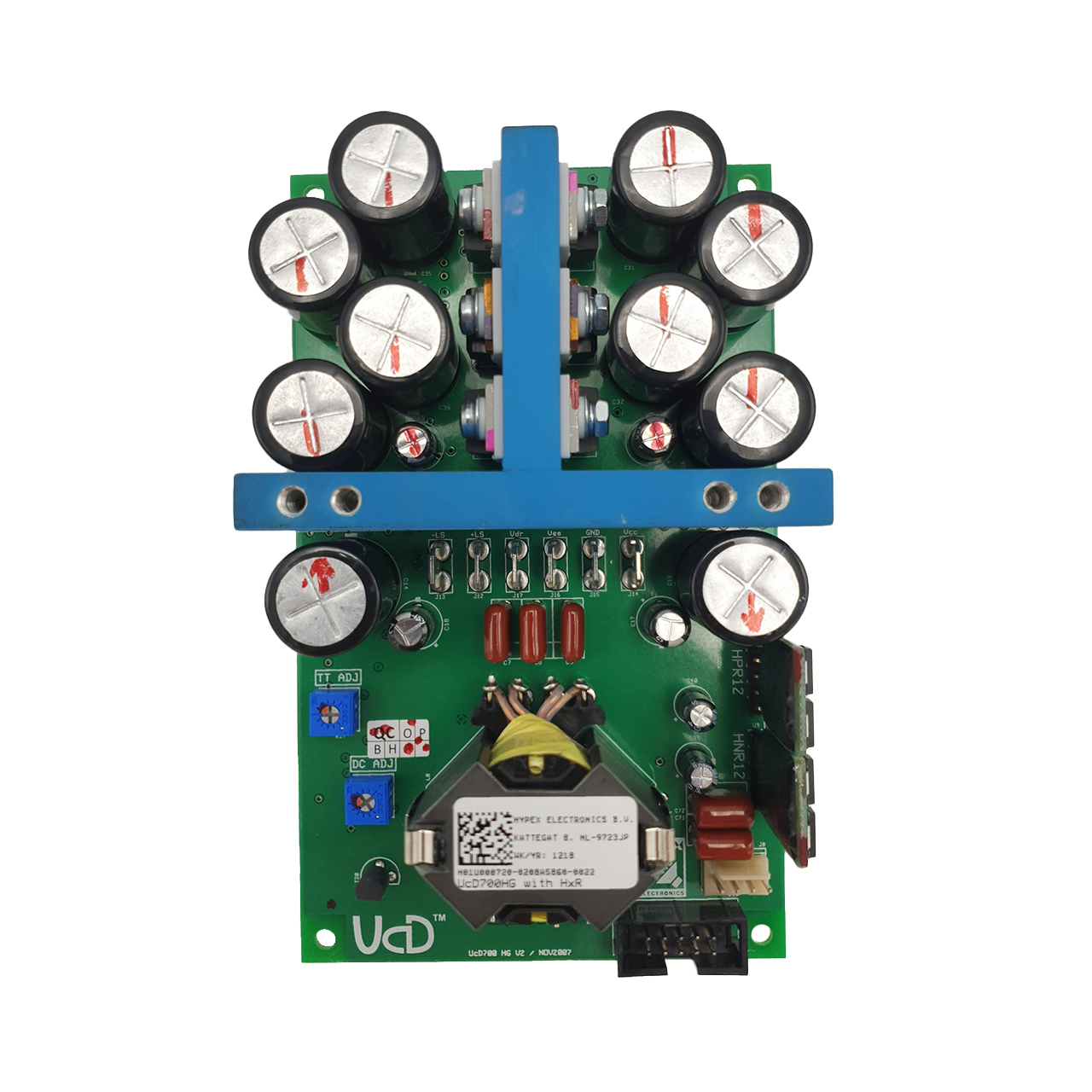

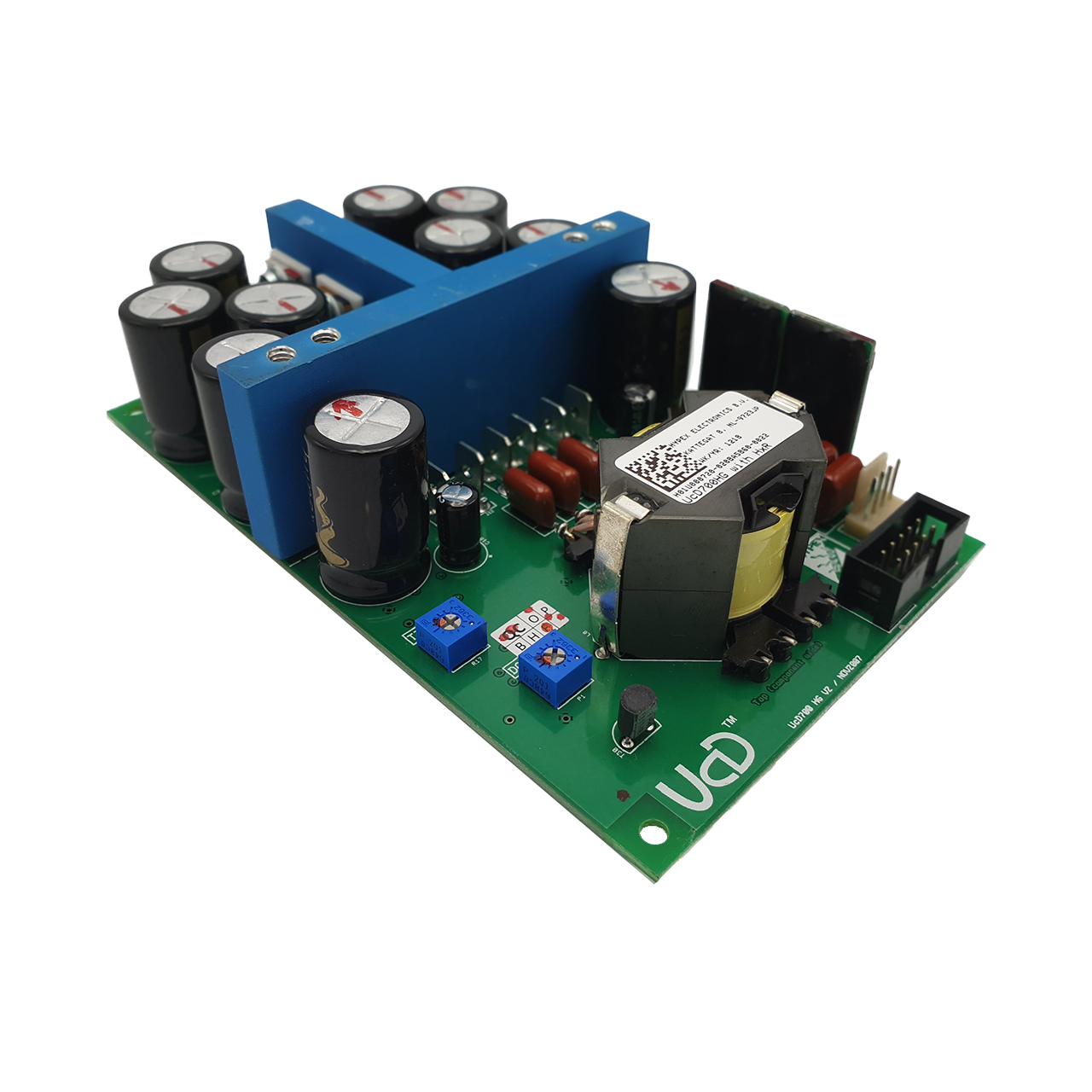

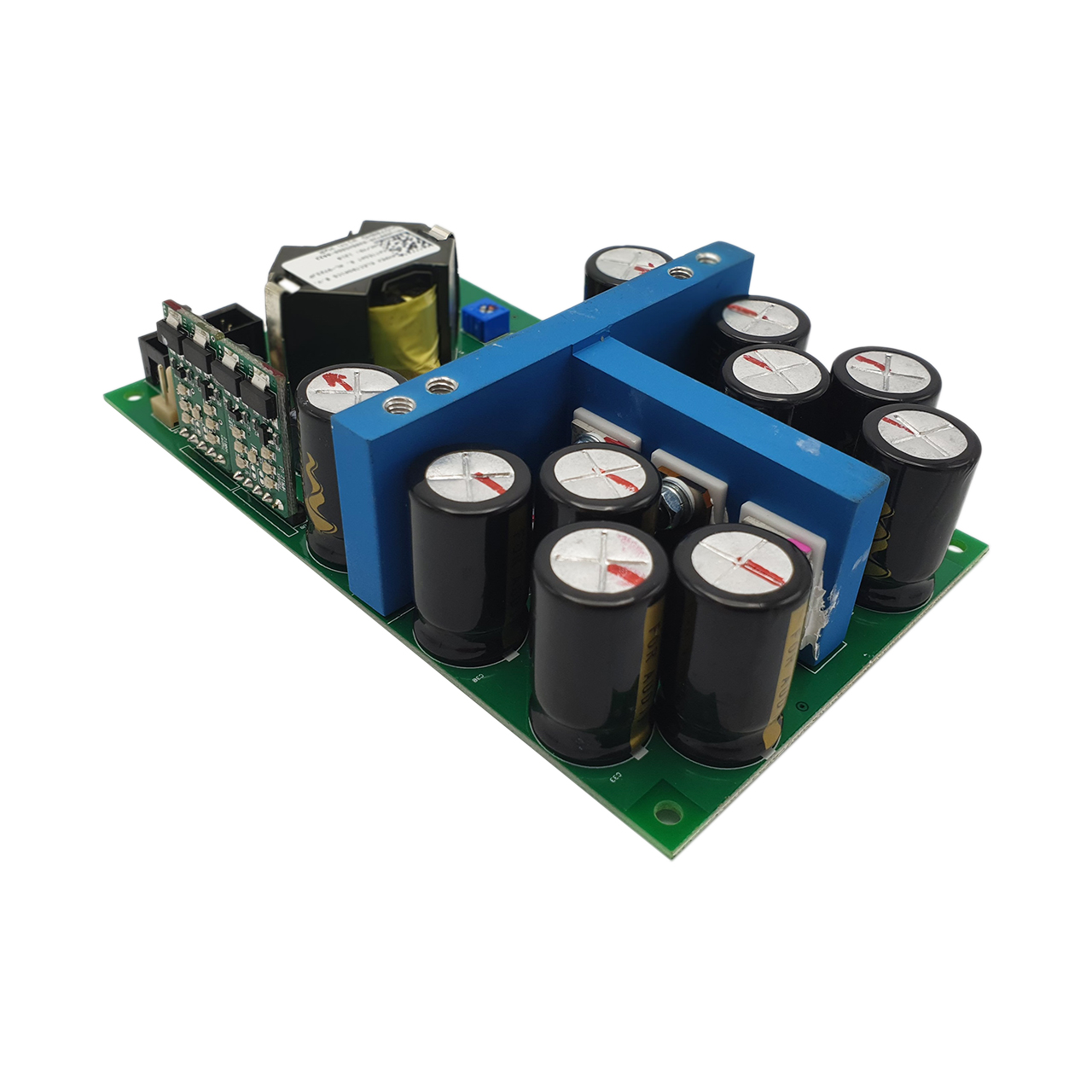

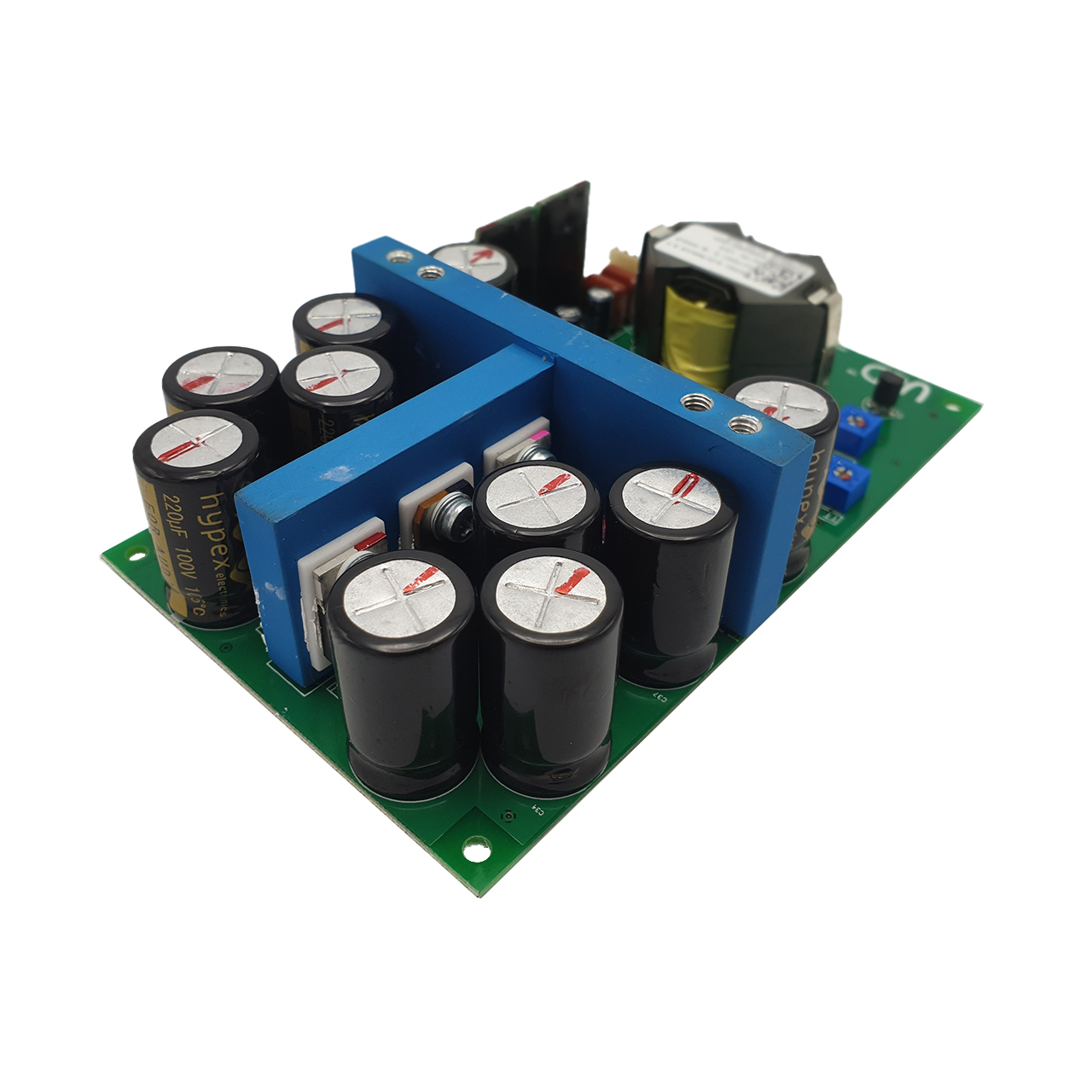

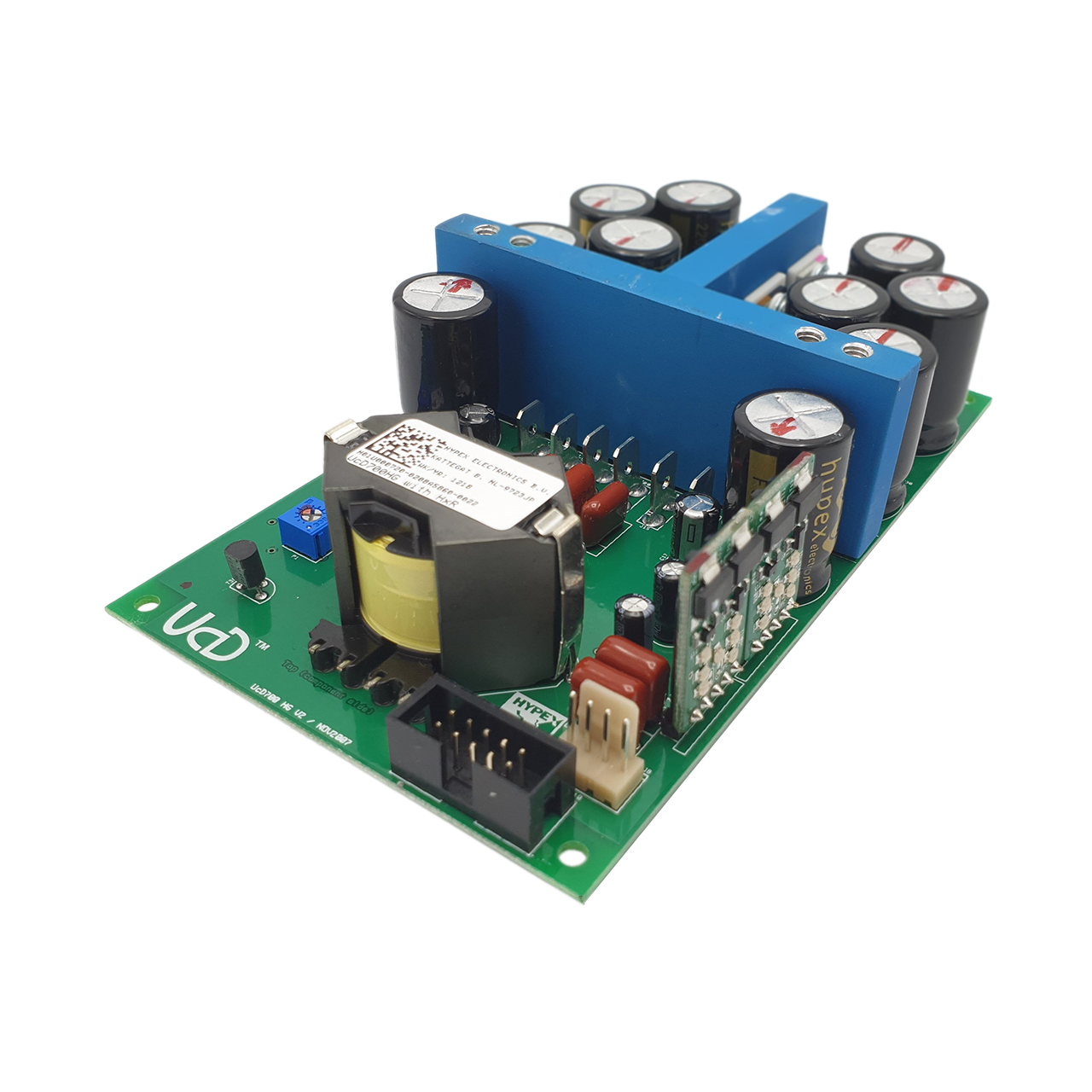

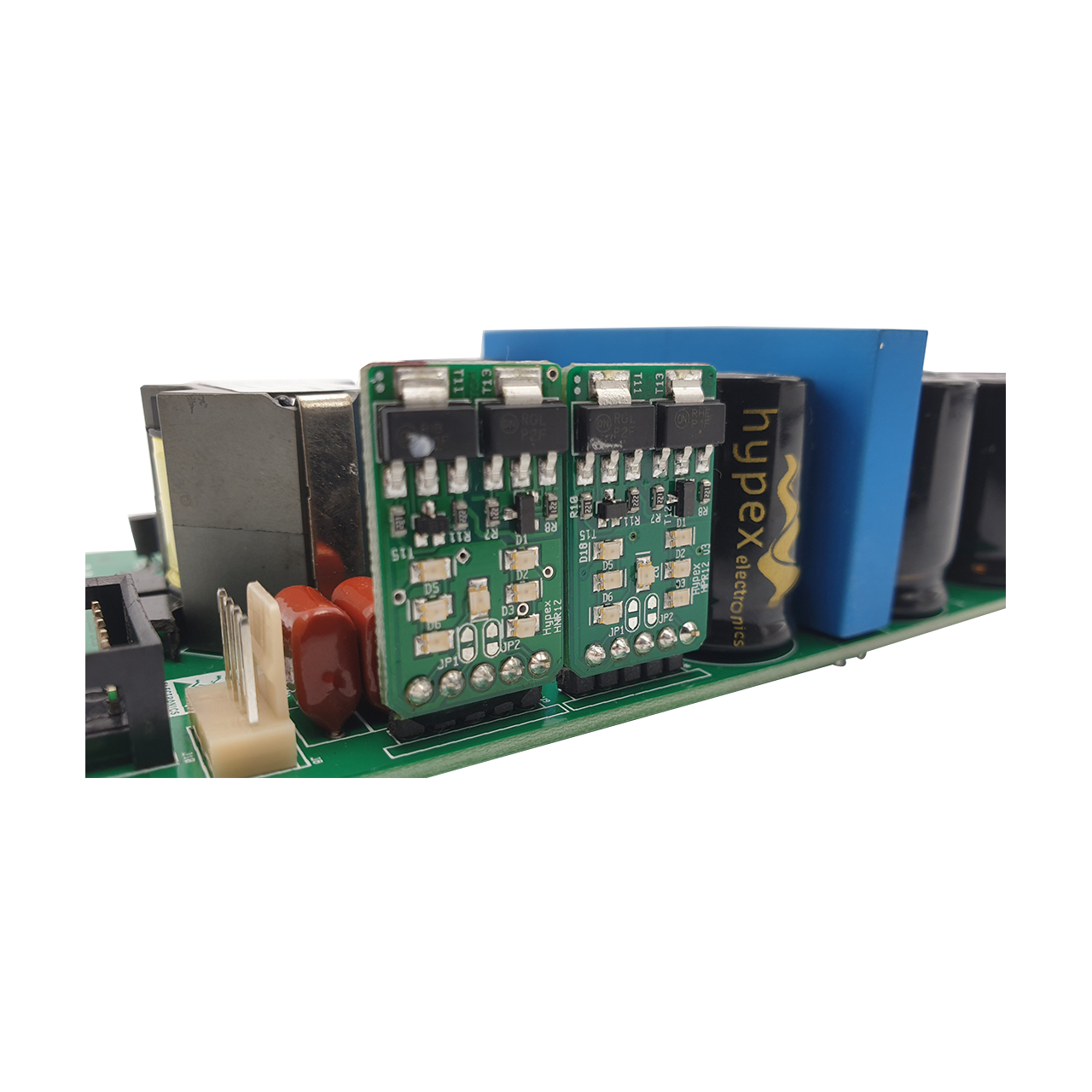

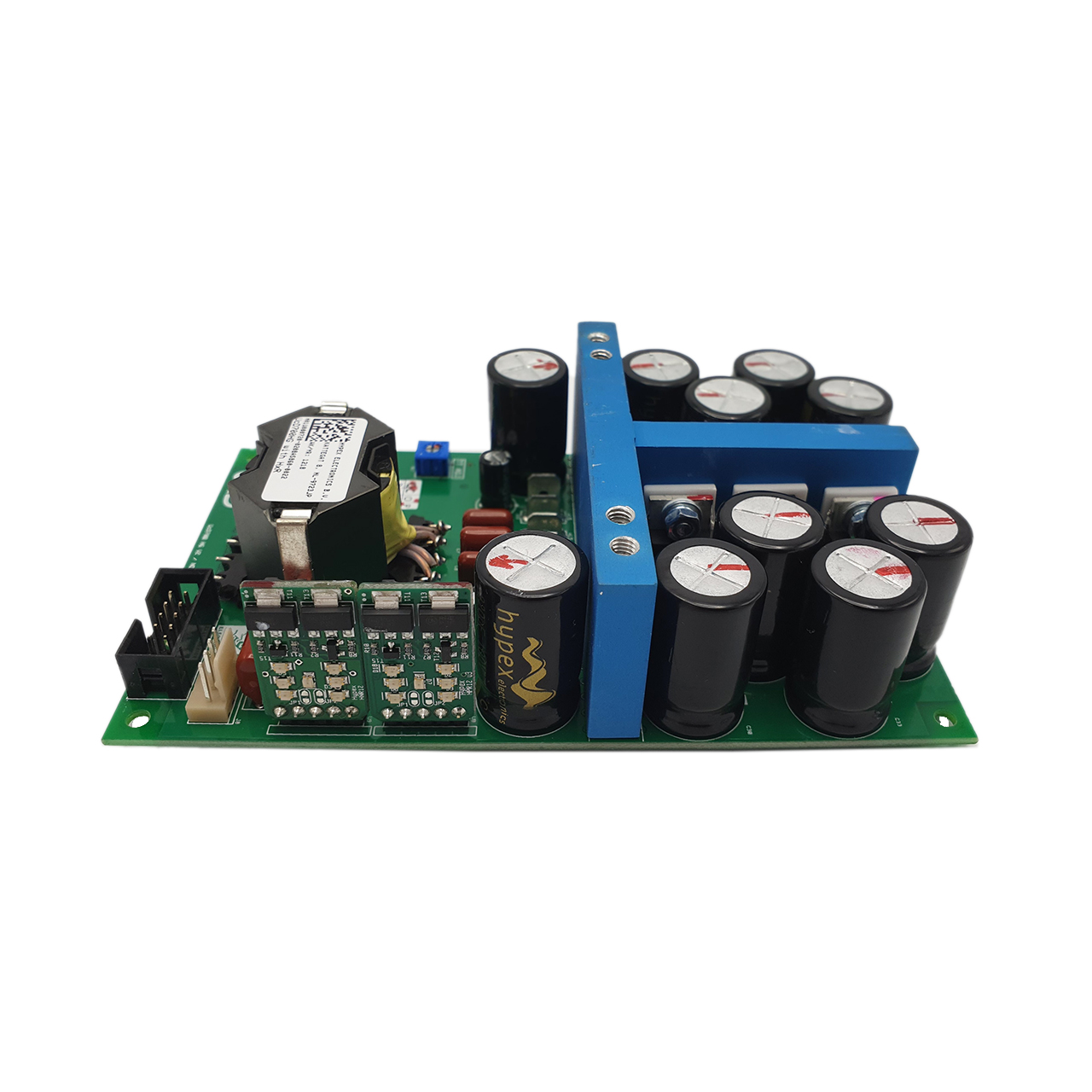

UcD700HG with HxR

The SMPS1200 represents a high-efficiency Safety Class 2 switch mode power supply meticulously engineered for compatibility with our UcD™, NCORE® and NCOREx® amplifier modules. Highlighted features encompass superior efficiency across the entire load spectrum, an exceptionally compact form factor, lightweight construction, and minimal radiated and conducted electromagnetic interference (EMI). Additionally, the SMPS1200 boasts an advanced overcurrent protection mechanism that, during a temporary overload, restricts the output current. Only when the overload persists for an extended duration does the supply transition into hiccup mode, maintaining this state until the overload condition resolves. This attribute, in conjunction with substantial primary electrolytic buffer capacitors, enables the supply to deliver robust dynamic headroom power to the connected amplifier. Furthermore, the SMPS1200 includes a symmetrical auxiliary output and a control circuit seamlessly interfacing with our UcD™, NCORE® and NCOREx® amplifier modules. Activation for routine operation or deactivation during a critical fault is managed through built-in actuators, ensuring a reliable safeguard. From the initial design phase to the final implementation, the SMPS1200 is optimized to achieve the lowest possible EMI signature, meeting the stringent demands of the most sophisticated audio applications. The SMPS1200 is designed with a selectable input voltage range, allowing it to accommodate various power input specifications. This flexibility enhances its adaptability to different regions and power grid configurations, making it a versatile choice for international applications. The SMPS1200 complies with relevant industry standards and certifications, ensuring that it meets the highest benchmarks for quality, safety, and performance. This commitment to standards reinforces its reliability in professional audio applications. Relevant standards: The SMPS1200A100, SMPS1200A180, SMPS1200A400 and SMPS1200A700 revision 1001 and higher fulfil the requirements of: IEC60065:2014 + A11:2017, IEC62368-1:2014 + A11:2017, UL62368-1:2014 Ed.2 and CSA C22.2#62368-1:2014 Ed.2. The SMPS1200 is an ETL listed component for the USA (UL62368-1:2014 Ed. 2) and Canada (CSA C22.2#62368-1:2014 Ed.2). HIGHLIGHTS • High efficiency • Small form factor • Low EMI FEATURES • Selectable input voltage range • Remote controlled operation • 4 variants available: A100 / A180 / A400 / A700 PROTECTIONS • Advanced Overcurrent protection • Over temperature protection • DC detection input POSSIBLE APPLICATIONS • Active Loudspeakers, for home and professional use • Line Array and Immersive Systems • Power Amplifiers, for home and professional use • Multichannel Power Amplifiers • Home Theatre Systems Notes: The SMPS1200A100 is not available for DIY customers. NCORE® and NCOREx® amplifier modules are not available for DIY customers.

*** This product is discontinued *** The DIYclassD UcD700 mono kit is a powerful and easy way to get a high-end HiFi system in your living room at a very affordable price. The KIT is designed with an easy to use mindset. Everybody can build it and enjoy the sound in the shortest time possible. Everything is there 1pcs UcD700HG with HxR, SMPS1200A700, chassis, cables. You don't even need to solder, we did it for you.Internal size: 193mm(W) x 58mm(H) x 265mm(D)External size: 200mm(W) x 79mm(H) x 280mm(D) (size incl feet, excl connectors)THIS KIT CONTAINSComplete DIYclassD case1pcs UcD700HG with HxRSMPS1200A700Complete internal cable harnessAll required connectorsAll required mounting materialsComplete comprehensive manualNOT INCLUDED IN THE KITPower cableLoudspeaker cablesInterconnectsTools as described in the manual
